ACI-Automation Components 118996

Артикул: 118996
Изготовитель: ACI-Automation Components
✅ В наличии
ЗАКАЗАТЬ ЗАКАЗАТЬ

Технические характеристики 118996

Раздел
Датчики температуры
Подраздел
ACI-Automation Components
Вес
  • Description: Room
  • Application: Indoor
  • Output: 4-20 mA
  • Humidity Range: 5-90% RH
  • Operating Temperature: 35-122 °F
  • Function: Temperature
  • Display: No Display
  • Override: No
  • Set Point: No
  • Approvals: WEEE
  • Net Weight: 0.17 lbs
  • Gross Weight: 0.17 lbs
  • Manufacturer Part Number: 118996
  • Manufacturer: ACI-Automation Components
  • Product Series: Transmitter Room
  • Family Series: ACI-Automation Components HVAC Sensors, Transmitter Room Series
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение, учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?

Если вы не нашли продукцию бренда ACI-Automation Components на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.

Заказать товар Заказать товар
ACI-Automation Components 118996

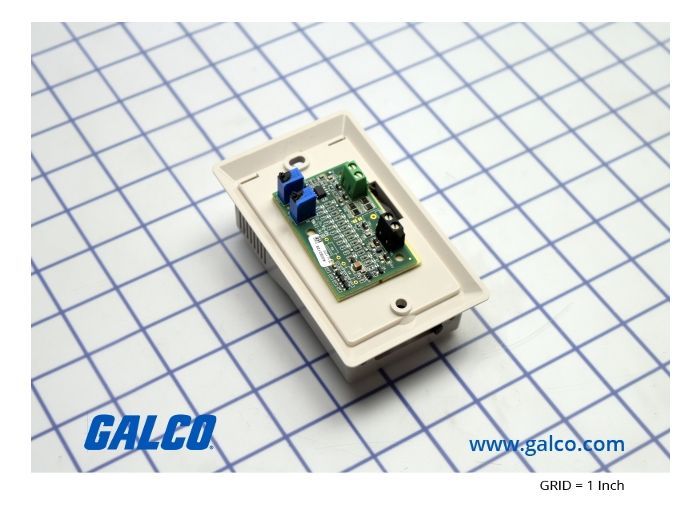

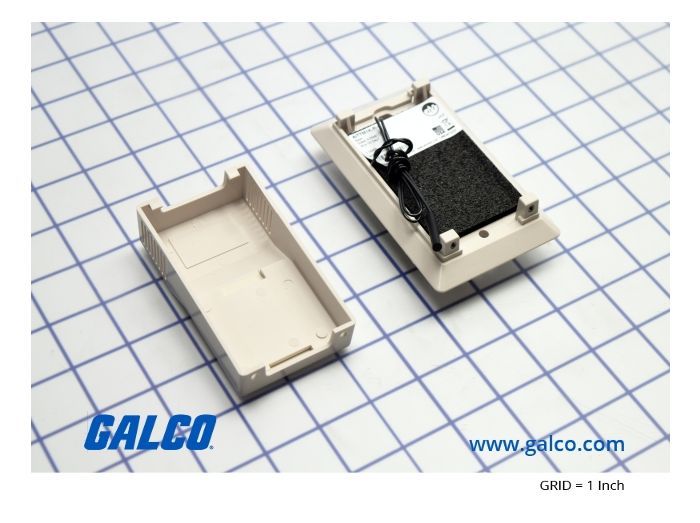

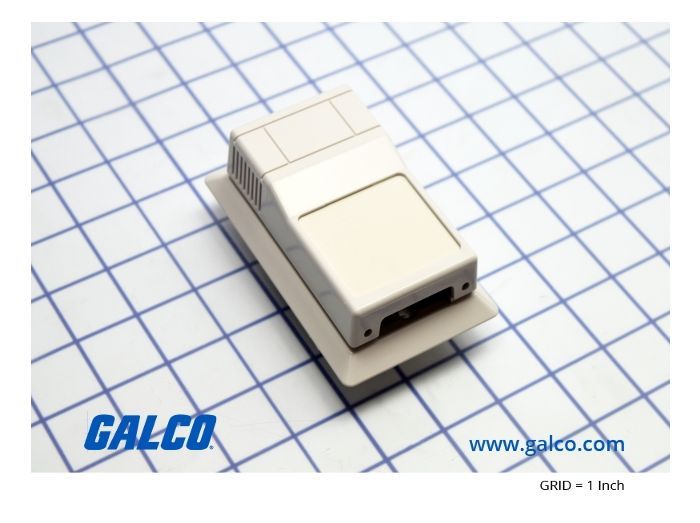

HVAC Sensors, Transmitter Room Series Item # A/TTM1K-R-4 Room The ACI Transmitter Room Series features a two‑wire, 4 to 20 mA loop powered output with optional 3‑Wire voltage output signals available. All transmitters include Zero and Span adjustments for field calibration and are calibrated using NIST Certified Calibration equipment. ACI recommends the use of an 18 to 22 AWG shielded cable for all temperature transmitter installations to reduce the chances of noise being introduced onto the signal lines. The room transmitters are designed to be mounted over a standard single gang junction box or hole in the wall and includes a foam pad to reduce the effects of self‑heating from the transmitter and thermal drafts from within the wall. For best accuracy, ACI recommends the use of the A/TTM Series Matched transmitters with 3 or 5 Point NIST Calibration Certificate, since they include a second calibration step in which the RTD and transmitter are calibrated together as a system. Optional Set Point, Override and Loop Powered LCD Display.
