ACI-Automation Components 121405
Артикул:
121405
Изготовитель:
ACI-Automation Components
✅ В наличии
ЗАКАЗАТЬ
ЗАКАЗАТЬ
Технические характеристики 121405
Раздел
Датчики температуры
Подраздел
ACI-Automation Components
Вес
-
Description: Duct 8in., Bb
-
Application: Duct
-
Output: 5.238 kOhm
-
Humidity Range: 10-95% RH
-
Operating Temperature: -40-302 °F
-
Probe Length: 8 "
-
Function: Temperature
-
Display: No Display
-
Override: No
-
Set Point: No
-
Approvals: CE, WEEE
-
Net Weight: 0.68 lbs
-
Gross Weight: 0.68 lbs
-
Manufacturer Part Number: 121405
-
Manufacturer: ACI-Automation Components
-
Product Series: Thermistor Duct
-
Family Series: ACI-Automation Components HVAC Sensors, Thermistor Duct Series
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о
стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение,
учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?
Если вы не нашли продукцию бренда ACI-Automation Components на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.
Заказать товар
Заказать товар
ACI-Automation Components 121405
HVAC Sensors, Thermistor Duct Series
Item #
A/AN-BC-D-8-BB
Duct 8in., Bb

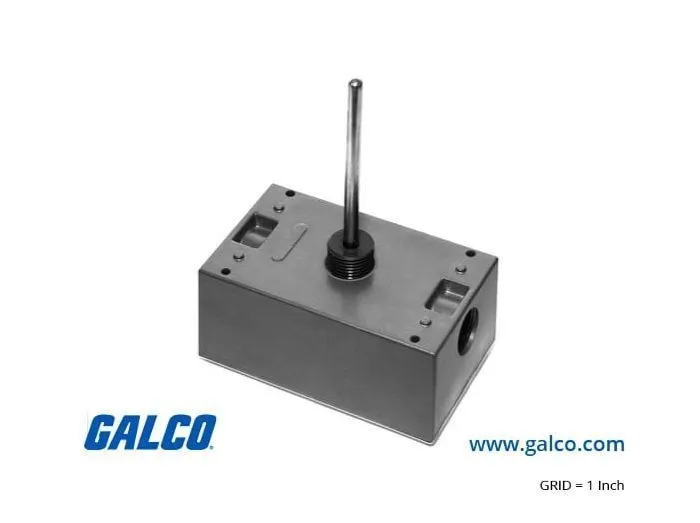

The ACI Thermistor Duct Series features a stainless steel probe with two, 22 AWG Etched Teflon colored lead wires to differentiate the different sensor types. The sensors in this series are manufactured using ACI's proved double encapsulation process to eliminate the effects of moisture on the sensors and increased response times from our high quality, thermally conductive epoxy. The duct sensor is designed to be used in smaller duct applications and includes an insulation pad for sealing your duct and dampening vibration. The sensor length should be determined by the width or diameter of your duct such that the tip of the probe reaches the approximate center of the duct. Our standard enclosure options are the galvanized enclosure "‑GD" or plastic duct enclosure with hinged cover "‑PB". On larger ducts, you may want to refer to our Rigid or Bendable Copper Averaging sensor for increased sensing points and better temperature control. This series can be ordered with optional NEMA/IP rated weather proof enclosures and NIST certificates as referenced on the back of the product data sheet.
