ACI-Automation Components 133018
Артикул:
133018
Изготовитель:
ACI-Automation Components
✅ В наличии
ЗАКАЗАТЬ
ЗАКАЗАТЬ
Технические характеристики 133018
Раздел
Датчики температуры
Подраздел
ACI-Automation Components
Вес
-

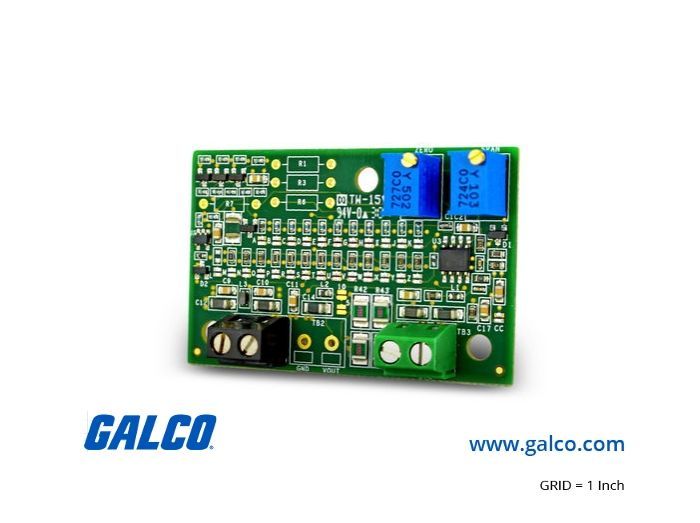

Description: Board Only, 4X, Potted Pcb
-
Application: All Purpose
-
Output: 4-20 mA
-
Humidity Range: 0-90% RH
-
Operating Temperature: -40-185 °F
-
Function: Temperature
-
Display: No Display
-
Override: No
-
Set Point: No
-
Approvals: WEEE
-
Net Weight: 0.034 lbs
-
Gross Weight: 0.034 lbs
-
Manufacturer Part Number: 133018
-
Manufacturer: ACI-Automation Components
-
Product Series: Transmitter Board Only
-
Family Series: ACI-Automation Components HVAC Sensors, Transmitter Board Only Series
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о
стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение,
учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?
Если вы не нашли продукцию бренда ACI-Automation Components на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.
Заказать товар
Заказать товар
ACI-Automation Components 133018
HVAC Sensors, Transmitter Board Only Series
Item #
A/TT1K-BO-4-4X-POT
Board Only, 4X, Potted Pcb
The ACI Transmitter Board Only Series features a two‑wire, 4 to 20 mA loop powered output signal with optional 3‑Wire voltage output signals available. Sensors are not included with the board only transmitter since they are designed to be used with any existing 100 or 1000 Ohm Platinum RTD sensor with a 385 temperature coeficient. All transmitters must be ordered with the temperature span that you require, since the boards are tuned to give you the best performance characteristics for the temperature span specified. Zero and Span adjustments are available for recalibration in the field when using NIST Certified equipment. We recommend the use of an 18 to 22 AWG shielded cable for all temperature transmitter installations to protect against the introduction of noise onto the signal lines. For applications in which a much you are looking for increased temperature performance and a higher level of corrosion and moisture resistance, our Ruggedized (Thermally Conductive Epoxy Coated) transmitters are also available. ACI does offer recalibration services for any transmitters sent back to us for a nominal fee.
