ACI-Automation Components 138550
Артикул:
138550
Изготовитель:
ACI-Automation Components
✅ В наличии
ЗАКАЗАТЬ
ЗАКАЗАТЬ
Технические характеристики 138550
Раздел
Датчики температуры
Подраздел
ACI-Automation Components
Вес
-
Description: Raw, 6ft.
-
Application: Duct
-
Output: 100 Ohm
-
Humidity Range: 10-95% RH
-
Operating Temperature: -40-392 °F
-
Probe Length: 1 "
-
Function: Temperature
-
Display: No Display
-
Override: No
-
Set Point: No
-
Approvals: CE, WEEE
-
Net Weight: 0.06 lbs
-
Gross Weight: 0.06 lbs
-
Manufacturer Part Number: 138550
-
Manufacturer: ACI-Automation Components
-
Product Series: Platinum Raw
-
Family Series: ACI-Automation Components HVAC Sensors, Platinum Raw Series
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о
стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение,
учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?
Если вы не нашли продукцию бренда ACI-Automation Components на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.
Заказать товар
Заказать товар
ACI-Automation Components 138550
HVAC Sensors, Platinum Raw Series
Item #
A/100-3W-W-6
Raw, 6ft.

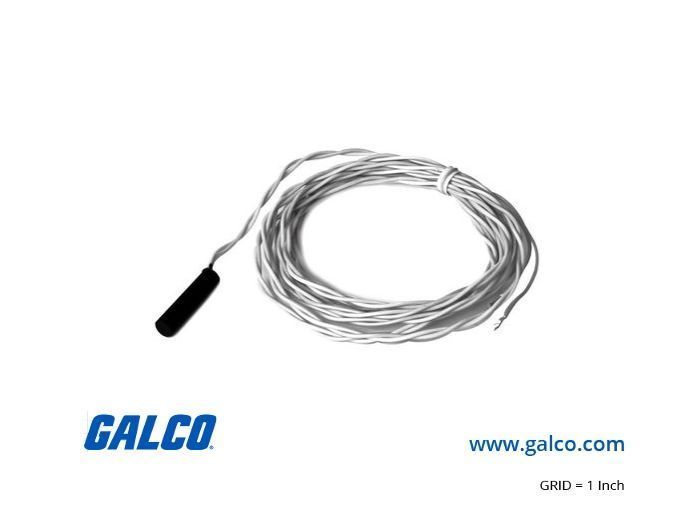

The ACI Platinum Raw Series features a one inch long, 1/4" diameter plastic cup with two or three, 24 inch 22 AWG Etched Teflon colored lead wires to differentiate the different sensor types. The three‑wire "‑3W" option should be ordered if using with a 3‑Wire temperature transmitter or sensor configuration on your building management system or PLC (Programmable Logic Controller). The purpose of the 3rd wire is to compensate for any external lead wire resistance that will affect your sensors output signal. For best results, ACI recommends the use of an 18 AWG lead wires to reduce the external lead wire resistance when using a Platinum RTD sensor. The sensors in this series are manufactured using ACI's proven manufacturing process to eliminate the effects of moisture upon the sensors and increased thermal response times using our high quality, thermally conductive epoxy. The raw sensor configuration is designed to monitor air temperatures and should not be fully submerged in liquid. This series can be ordered with optional NIST Certificate or plenum rated cable as shown in the ordering grid on the back of the product data sheet. All additional wire specifications can be found on our products download page on‑line. Please contact ACI for more information regarding this product or to discuss your application in further detail. Other options may be available upon request.
