ACI-Automation Components 141072

Артикул: 141072
Изготовитель: ACI-Automation Components
✅ В наличии
ЗАКАЗАТЬ ЗАКАЗАТЬ

Технические характеристики 141072

Раздел
Датчики давления
Подраздел
ACI-Automation Components
Вес
  • Description: 0-1in.Wc, 4-20Ma, Pitot, Din
  • Accuracy: 0.5 %
  • Pressure Range: 0-1 in WC
  • Output: 0-10 VDC, 0-5 VDC, 4-20 mA
  • Connection: 1/2 NPT
  • Sensor Style: Low Differential
  • Voltage: 16-36 VDC, 24 VAC
  • Electrical Connection: Terminal Block
  • Operating Temperature: -4-185 °F
  • Approvals: CE, UL, WEEE
  • Net Weight: 0.8 lbs
  • Gross Weight: 0.8 lbs
  • Manufacturer Part Number: 141072
  • Manufacturer: ACI-Automation Components
  • Product Series: DLP
  • Family Series: ACI-Automation Components HVAC Sensors, DLP Series
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение, учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?

Если вы не нашли продукцию бренда ACI-Automation Components на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.

Заказать товар Заказать товар
ACI-Automation Components 141072

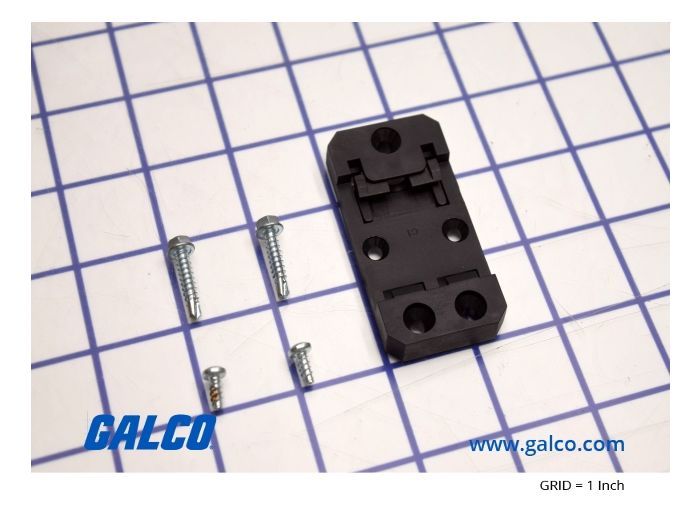

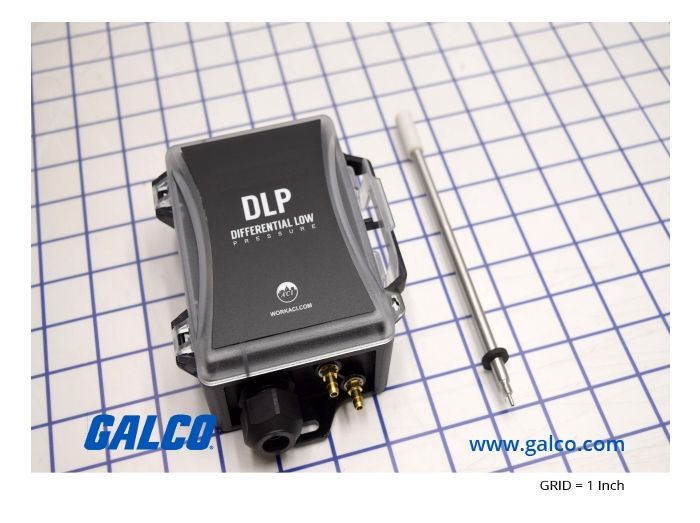

HVAC Sensors, DLP Series Item # A/DLP-001-W-U-N-A-3 0-1in.Wc, 4-20Ma, Pitot, Din The DLP Series is based on a piezoresistive, silicon sensing element which senses Differential Pressure and provides an analog output. The hinged cover on the DLP can be easily opened using the integrated locking tab on the side of the enclosure. This allows for easy access to the zero function and field selectable ranges and outputs. The DLP Series also includes an optional, five digit LCD for installation and monitoring support. The standard accuracy of this series is ‑+0.5% FSO but is offered with ‑+0.25% and N.I.S.T. certification as well (see expanded series). Field selectable analog outputs include 0‑5 and 0‑10 VDC, or 4‑20mA which correlate to a uni or bidirectional pressure range from 0‑0.1" up to 0‑40" of water column, depending on your model selection. Each unit has up to 8 field selectable, uni or bidirectional ranges. Options include a Pitot Tube or Din Rail Clip.
