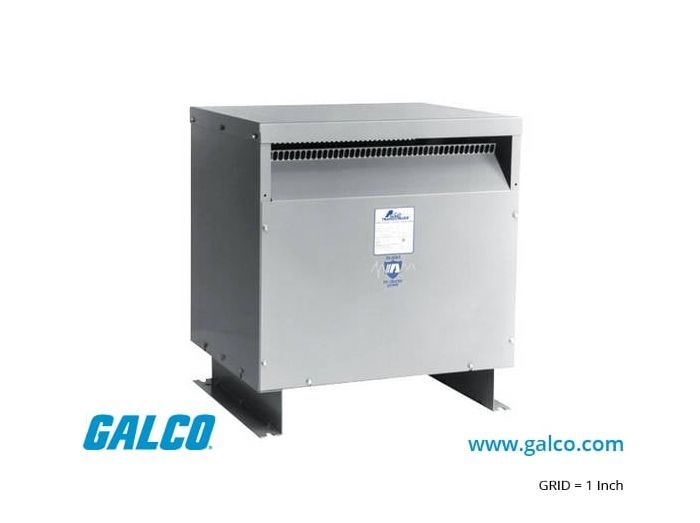

Acme Electric DTFA0344S
Артикул:
DTFA0344S
Изготовитель:
Acme Electric
✅ В наличии
ЗАКАЗАТЬ
ЗАКАЗАТЬ
Технические характеристики DTFA0344S
Раздел
Трансформаторы гальванической развязки
Подраздел
Acme Electric
Вес
-
Manufacturer Part Number: DTFA0344S
-
Manufacturer: Acme Electric
-
Product Series: DT
-
Family Series: Acme Electric Transformers, DT Series
-
Description: Drive Isolation Transformer - Three Phase, 230Δ - 230Y/133V, 34kVA
-
Output: 34 kVA
-
Primary Voltage: 230 VAC
-
Secondary Voltage: 230 VAC
-
Phase: 3
-
Horsepower: 25 hp
-
Termination: Pads
-
Mounting: Floor, Wall
-
NEMA Rating: NEMA 1
-
Approvals: CSA, UL
-
Net Weight: 330 lbs
-
Gross Weight: 370 lbs
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о
стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение,
учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?
Если вы не нашли продукцию бренда Acme Electric на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.
Заказать товар
Заказать товар
Acme Electric DTFA0344S
Transformers, DT Series
Item #
DTFA-034-4S
TFMR 3PH 34KVA 230-230Y133
3‑Phase 60 Hertz
180 degrees and 220 degrees C Insulation Systems
Designed for Use With AC, Adjustable Frequency or DC Drives
Full Range of KVA Ratings Cover All Standard Drive Systems
Ample Wiring Compartment for Easy Cable Entry
The Acme Drive Isolation Transformers are specifically designed to accommodate the special voltages and KVA sizes unique to AC and DC motor drive applications. Acme uses strip conductors (above 7.5 KVA) instead of wire for DIT series that easily accommodates the servere electrical and mechanical stresses found in today's AC & DC motor drives. The inherent excellent line isolation of these transformers is further enhanced with the extra protection of Acme's Electrostatic Shield ‑ Free in all DIT's.
The harmonic current generated by AC & DC drives increases eddy current losses (heat) in transformer windings. The thicker the winding conductor, the greater the losses. Acme uses one turn per layer of thin strip conductor which provides lower eddy current lossesthan comparable wire wound units. Lower losses equals cooler operation and longer transformer life. Strip windings minimize axial short circuit forces that can cause mechanical displacement of the windings under fault conditions. For extra protection all designs 7.5 KVA and above use primary and secondary coils of equal axial length. This feature tends to negate axial short circuit forces, further imporving transformer life expectancy.
