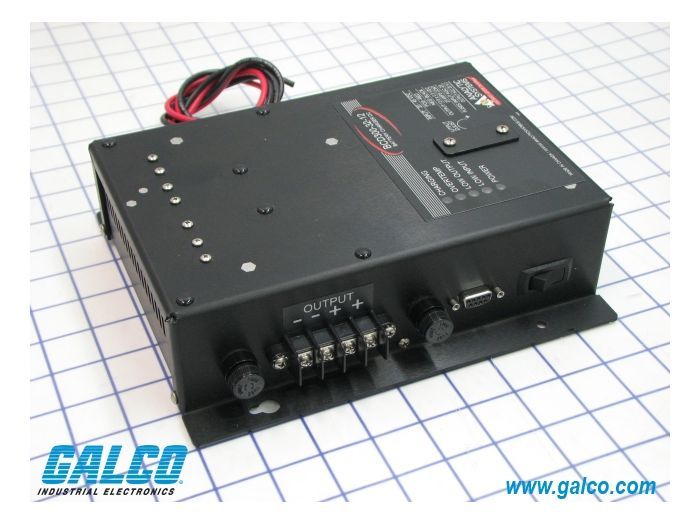

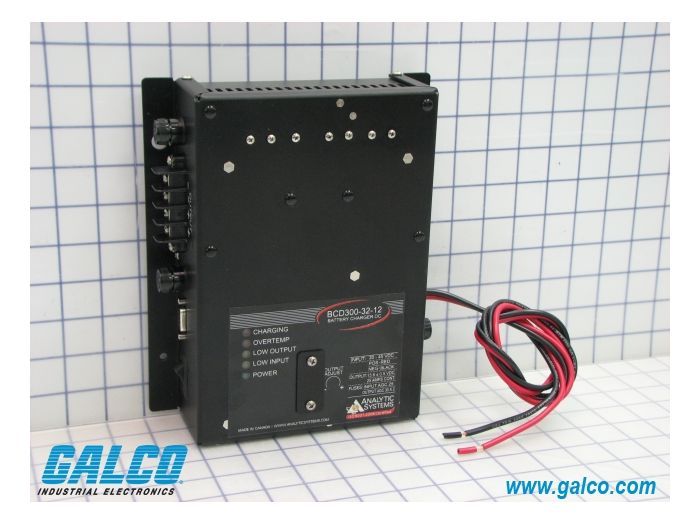

Analytic Systems BCD300-32-12

Артикул: BCD300-32-12
Изготовитель: Analytic Systems
✅ В наличии
ЗАКАЗАТЬ ЗАКАЗАТЬ

Технические характеристики BCD300-32-12

Раздел
Зарядные устройства для аккумуляторов
Подраздел
Analytic Systems
Вес
  • Description: DC/DC Charger, 25A, 20-45V In, 12V Out
  • Input Voltage: 20-45 VDC
  • Nominal Input Voltage: 36 VDC
  • Nominal Output Voltage: 12 VDC
  • Battery Type: AGM, Deep Cycle Lead-Acid, Gel Cell, Wet Cell
  • Charging Stages: 2
  • Current Rating: 25 A
  • Mounting: Panel
  • Approvals: CSA, UL
  • Net Weight: 0.25 lbs
  • Gross Weight: 0.2875 lbs
  • Manufacturer Part Number: BCD300-32-12
  • Manufacturer: Analytic Systems
  • Product Series: BCD
  • Family Series: Analytic Systems Power Supplies, BCD Series
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение, учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?

Если вы не нашли продукцию бренда Analytic Systems на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.

Заказать товар Заказать товар
Analytic Systems BCD300-32-12
Power Supplies, BCD Series Item # BCD300-32-12 DC/DC Charger, 25A, 20-45V In, 12V Reliability Features Include: An Input Fuse, Thermal Shutdown, Current Limiting, Reverse Battery Hookup Protection, Output Short Circuit Shutdown with Automatic Recovery, and an Equalizing Charging Cycle The Output Voltage Is Easily Adjusted 0.5 Volts Above or Below the Standard Output Voltage to Accommodate Special Charging Requirements Current Mode Switching Design Offers Increased Power and Reliability in a Compact Package Extra Input and Output Filtering Reduces EMI to Extremely Low Levels Step‑Up & Step‑Down DC Source Chargers and Equalizers These units provide up to 600 watts to charge a 12V or 24 V battery systems (1 or 2 banks) from a 12, 24, 32 or 36 volt source. The single‑board design incorporates state‑of‑the‑art switch mode technology for unmatched efficiency and ultra‑quiet operation. Multiple stages of filtering reduce radiated or conducted noise to very low levels. All Series are capable of charging up to two independent banks of batteries. High‑Voltage Isolated DC Source Chargers These isolated DC units charge 12, 24 or 48 volt batteries from a 72, 110, 220 or 300 VDC power source ‑ and battery voltages up to 650 volts are also available by special order.
