Appleton 25SPX2K1005

Артикул: 25SPX2K1005
Изготовитель: Appleton
✅ В наличии
ЗАКАЗАТЬ ЗАКАЗАТЬ

Технические характеристики 25SPX2K1005

Раздел
Кабельные вводы
Подраздел
Appleton
Вес
  • Manufacturer Part Number: 25SPX2K1005
  • Manufacturer: Appleton
  • Product Series: PX2K
  • Family Series: Appleton Cable Entries, PX2K Series
  • Description: Cable Gland, Type Straight, Thread Size 1 Inch NPT, Constructional Feature Flameproof, Cable Type Braid, Tape, Wire, Lead Sheath Armored, Jacketed Marine Shipboard Cable, Cable Outer Diameter 0.55 to 0.87 Inch, Material Nickel Plated Brass, Enclosure
  • Hub Size: 1 NPT
  • Number of Cables: 1
  • Cable Style: Round
  • Angle: Straight
  • NEMA Rating: NEMA 4X
  • Split Frame: No
  • Cable Diameter Range: 0.55-0.87 "
  • Type: Bushing Grip
  • Composition: Metallic
  • Material: Nickel Plated Brass
  • Hazardous Location: Yes
  • Approvals: ATEX, CSA, UL
  • Protection Rating: IP66, IP68
  • Comments: (Braids, Tape and Wire with Lead Sheath Version) with Compound Barrier Seal.
  • Net Weight: 0.7275 lbs
  • Gross Weight: 1.155 lbs
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение, учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?

Если вы не нашли продукцию бренда Appleton на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.

Заказать товар Заказать товар
Appleton 25SPX2K1005

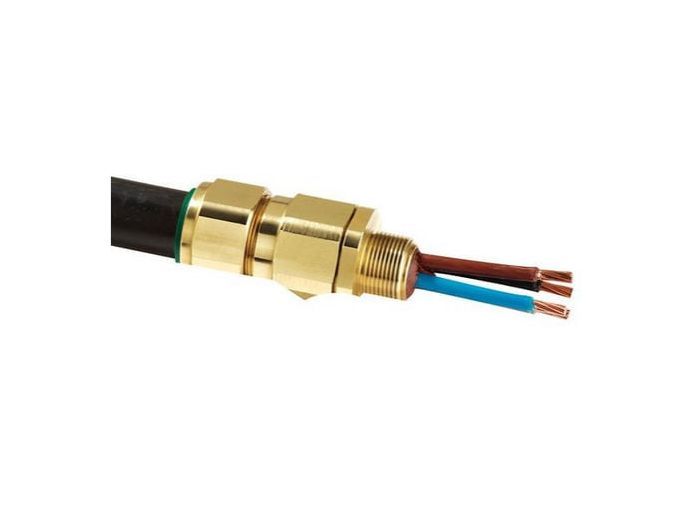

Cable Entries, PX2K Series Item # 25SPX2K1005 PX2K CABLE GLAND 100NPT Cable gland with compound barrier seal for use in hazardous areas with all types of armored cables (braid, tape and wire) The cable gland provides mechanical cable retention and earth continuity via cable armor termination A combined detachable armor cone and compound tube, together with AnyWay universal clamping ring arrangement allows the cable to be easily disconnected from the equipment The cable gland is IP66/68 and complies with deluge protection tests The cable gland is supplied with epoxy resin and two detachable armor cones. Appleton PX2K Series Nickel Plated Brass Cable Glands are suitable for all types of armored cables (braid, tape, wire and lead sheath version) certified for enclosures with the following protection modes: Ex d flameproof IIB or IIC (as per 10.4.2 of IEC 60079‑14), Ex e increased safety, Ex nR restricted breathing and D dust environment. They are ideal for onshore and offshore use and for other hazardous areas exposed to gases and dust.
