Технические характеристики 4Q9400L
Раздел
Соединители для кабелепроводов и кабелей
Подраздел
Appleton
Вес
-
Manufacturer Part Number: 4Q9400L
-
Manufacturer: Appleton
-
Product Series: 4Q 90
-
Family Series: Appleton Fittings, 4Q 90 Series
-

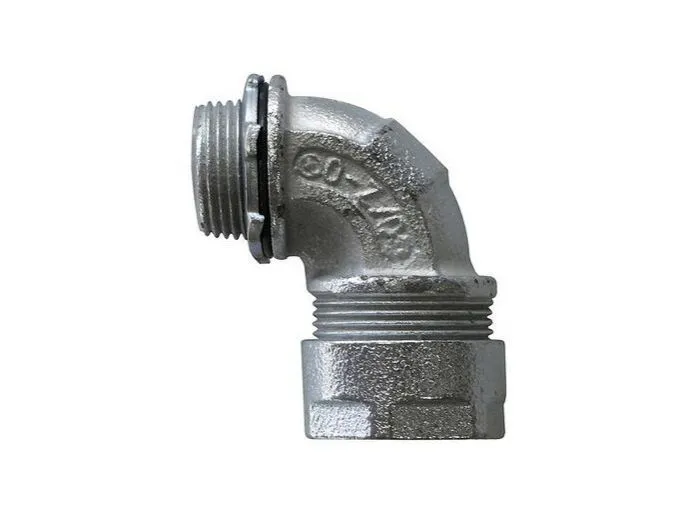

Description: 4 IN 90 DEG CONN LFMC W/LUG
-
Conduit/Cable Type: FMC (Flexible Metallic Conduit)
-
Connection Type: Hub
-
Angle: 90 °
-
Trade Size: 4 "
-
Hub Size: 4 "
-
Hub Type: Male NPT Thread
-
Grounding: Yes
-
Insulated Throat: No
-
Jacketed: No
-
Material: Malleable Iron
-
Composition: Metallic
-
Protection Rating: Liquid Tight
-
NEMA Rating: NEMA 4
-
Hazardous Location: Yes
-
Approvals: CSA, UL
-
Net Weight: 0 lbs
-
Gross Weight: 0 lbs
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о
стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение,
учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?
Если вы не нашли продукцию бренда Appleton на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.
Заказать товар
Заказать товар
Appleton 4Q9400L
Fittings, 4Q 90 Series
Item #
4Q9400L
4 IN 90 DEG CONN LFMC W/LUG
Positive grounding type
Grounding lug is cast as an integral part of malleable iron gland nut. Provides high ground fault withstand capability
Furnished with locknut and KO sealing ring
Liquidtight/Raintight/Oiltight/Concretetight
UL Listed NEMA Type 4 when installed into a NPT threaded entry or UL Listed conduit hub (sizes 1‑1/4"" and larger require thread sealant)
Bonding wedge locknuts are recommended in hazardous locations. See 101 Series
Long ferrule prevents pull‑out and tight bend conduit "pop‑out"
Inspection windows in ferrule to ensure full engagement
O‑Z/Gedney Ground‑Tite 4Q Series 90 grounding liquidtight connectors have male NPT threads. They are used to secures, ground and seal liquidtight flexible metal conduit and terminate bonding conductor runs externally alongside liquidtight. The compact, slim diameter design results in a connector that offers a small turning radius. conduit.
