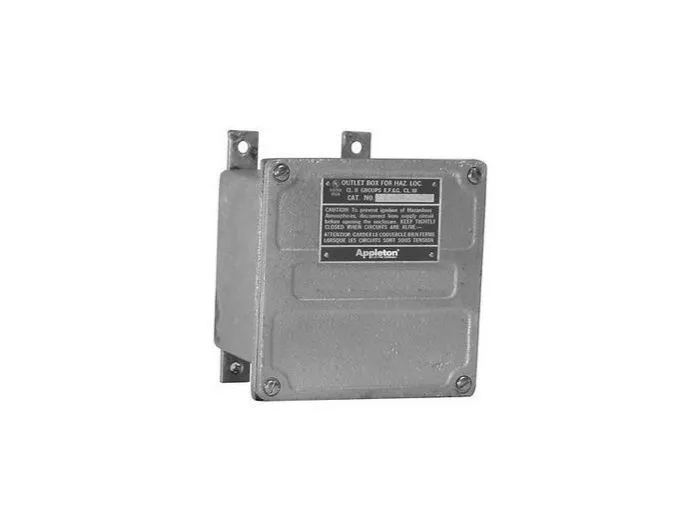

Appleton DTX080806

Артикул: DTX080806
Изготовитель: Appleton
✅ В наличии
ЗАКАЗАТЬ ЗАКАЗАТЬ

Технические характеристики DTX080806

Раздел
Настенное крепление
Подраздел
Appleton
Вес
  • Manufacturer Part Number: DTX080806
  • Manufacturer: Appleton
  • Product Series: DTX
  • Family Series: Appleton Enclosures, DTX Series
  • Description: Cast Junction Box, Hub Size 3/4 Inch, Overall Size 9.81 Inch L x 9.81 Inch W x 6.47 Inch D, Inner Size 8 Inch L x 8 Inch W x 6 Inch D, Wall Thickness 0.22 Inch Top, 0.25 Inch Cover, 0.22 Inch Back, Cover Type Gasketed Bolt-On, Enclosure Class II Div 1
  • Material: Cast Iron
  • Composition: Metallic
  • Number of Doors: 1
  • Cover Design: Lift-Off Cover
  • Window/Clear Cover: No
  • Latching Mechanism: Screws
  • Panel Included: No
  • NEMA Rating: NEMA 4, NEMA 9
  • Nominal Height: 10 "
  • Nominal Width: 10 "
  • Nominal Depth: 6 "
  • Approvals: UL
  • Net Weight: 0 lbs
  • Gross Weight: 0 lbs
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение, учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?

Если вы не нашли продукцию бренда Appleton на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.

Заказать товар Заказать товар
Appleton DTX080806
Enclosures, DTX Series Item # DTX080806 JUNCTION BOX DUST-IGNITIONPROF Dust‑Ignitionproof, watertight Ideal for use in grain elevators, grain storage areas, paper mills, coal storage facilities and textile factories Cast iron box and cover for surface mounting. Cast aluminum available as an option Provided with mounting lugs Mechanically attached gaskets Appleton dust‑ ignitionproof, watertight DTX surface mounting junction boxes are used to protect personnel against accidental contact with enclosed electrical devices or connections and to protect the enclosed devices or connections against specified external conditions. They also serve as intermediate pulling and splicing points in a conduit system. DTX junction boxes are specially designed and constructed for hazardous locations where ignitable dusts, fibers or flyings.
