Appleton EDS110-F13

Артикул: EDS110-F13
Изготовитель: Appleton
✅ В наличии
ЗАКАЗАТЬ ЗАКАЗАТЬ

Технические характеристики EDS110-F13

Раздел
Перекидной переключатель
Подраздел
Appleton
Вес
  • Description: Explosionproof Tumbler Switch Control Station, Type Dead End, Constructional Feature Explosionproof, Dust-Ignitionproof, Voltage Rating 120 to 277 VAC, Current Rating 30 Ampere, Contact Configuration 1-Pole, Operator Type Front Operated Lever, Box Type
  • Number of Gangs: 1
  • Switch Type: 1-Pole
  • Enclosure: Dead-End
  • Material: Iron
  • Hub Size: 1 "
  • Current Rating: 30 A
  • Voltage: 120-277 VAC
  • Type of Operator: Front Operated
  • Mounting: Mounting Holes
  • Horsepower: 2 hp @ 120 VAC, 2 hp @ 240 VAC
  • NEMA Rating: NEMA 3, NEMA 7BCD, NEMA 9EFG
  • Approvals: UL
  • Comments: Explosionproof, Dust-Ignitionproof
  • Net Weight: 0 lbs
  • Gross Weight: 5.2 lbs
  • Manufacturer Part Number: EDS110-F13
  • Manufacturer: Appleton
  • Product Series: EDS
  • Family Series: Appleton Switches, EDS Series
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение, учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?

Если вы не нашли продукцию бренда Appleton на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.

Заказать товар Заказать товар
Appleton EDS110-F13

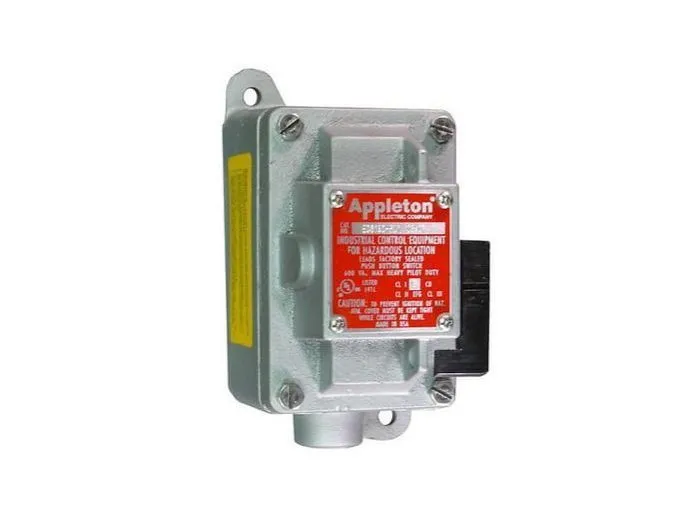

Switches, EDS Series Item # EDS110F13 FACTORY SEALED SWITCH UNILET Explosionproof, Dust‑Ignitionproof. Ideal for installation in chemical and petrochemical plants, refineries and other process industries Sealing chamber has prewired factory sealed pigtail leads to switch Enclosures have external mounting lugs for ease of mounting Smooth, rounded integral bushing in each hub protects conductor insulation Enclosures furnished with internal ground screw Threaded stainless steel operating handle provides positive corrosion resistant operation Choice of front‑operating or side rocker arm handle; each may be locked in ON or OFF position Appleton explosionproof, dust‑ignitionproof EDS Series factory sealed tumbler switches confine the arcing of enclosed switches, preventing ignition of ignitable atmospheres during connect and disconnect operation of lighting and light power loads. They are designed for use in classified areas where ignitable vapors, gases or highly combustible dusts are present such as chemical and petrochemical plants, refineries and other process industries.
