Appleton ELBY125A

Артикул: ELBY125A
Изготовитель: Appleton
✅ В наличии
ЗАКАЗАТЬ ЗАКАЗАТЬ

Технические характеристики ELBY125A

Раздел
Локти
Подраздел
Appleton
Вес
  • Conduit/Cable Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
  • Connection Type: Female to Female Thread
  • Angle: 90 °
  • Trade Size: 1-1/4 "
  • Material: Aluminum
  • Composition: Metallic
  • Protection Rating: Explosion Proof, Dust-Ignition Proof
  • Approvals: CSA, UL
  • Net Weight: 0 lbs
  • Gross Weight: 1.03 lbs
  • Description: ELBY Series 90 DEG Capped Elbow, Material: Aluminum, Finish: Epoxy Powder Coat, Length: 4 IN, Trade Size: 1-1/4 IN, Flexibility: EMT, Connection: Female Threaded, Dimension C: 3.13 IN, Standard: UL 886, UL File Number E10444, CSA C22.2 N
  • Manufacturer Part Number: ELBY125A
  • Manufacturer: Appleton
  • Product Series: ELBY
  • Family Series: Appleton Fittings, ELBY Series
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение, учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?

Если вы не нашли продукцию бренда Appleton на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.

Заказать товар Заказать товар

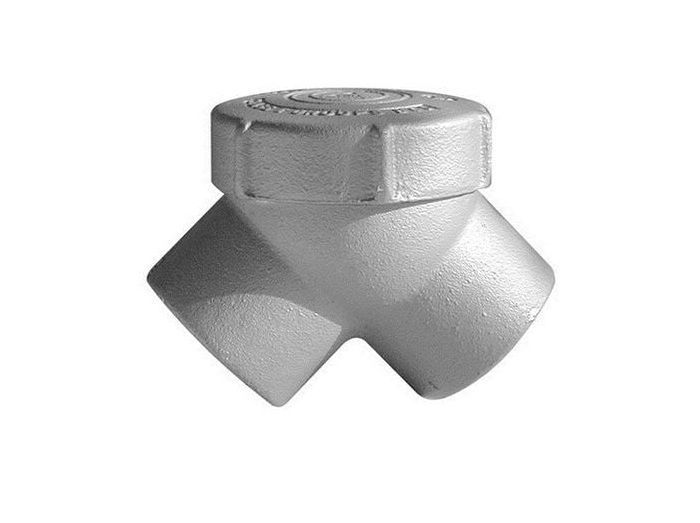

Appleton ELBY125A
Fittings, ELBY Series Item # ELBY125A 1 1/4 CAPPED ELBOW Explosionproof, dust‑ignitionproof Serves as pulling fitting Makes 90 Degrees bend in conduit runs Screw‑on Cover for ease of installation and removal Cover opens on an angle permitting conductors to be pulled straight through either hub Can make 90 Degrees turns in conduit where a compact turn is desired Female tapered threaded hubs (NPT) for rigid conduit and IMC Appleton ELBY explosionproof and dust‑ignitionproof capped elbows are used to create 90 Degrees bends in conduit runs. The cover opens on an angle permitting conductors to be pulled straight through either hub allowing them to be used as pulling fittings.Appleton ELBY explosionproof and dust‑ignitionproof capped elbows are used to create 90 Degrees bends in conduit runs. The cover opens on an angle permitting conductors to be pulled straight through either hub allowing them to be used as pulling fittings.
