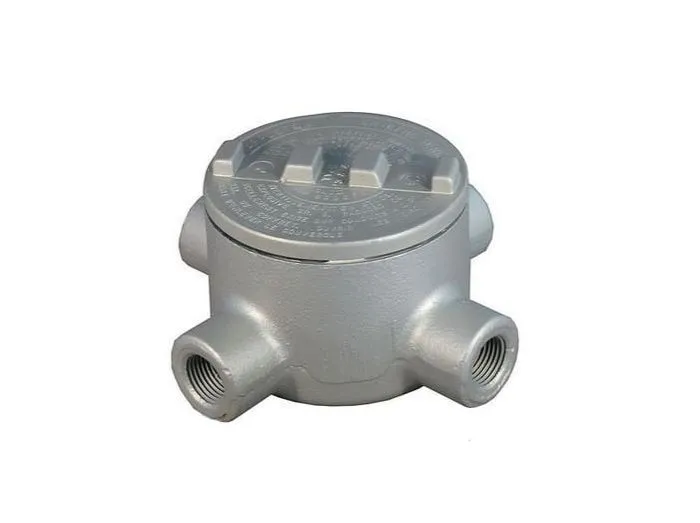

Appleton GRLA75A

Артикул: GRLA75A
Изготовитель: Appleton
✅ В наличии
ЗАКАЗАТЬ ЗАКАЗАТЬ

Технические характеристики GRLA75A

Раздел
Выводная коробка
Подраздел
Appleton
Вес
  • Connection Type: Threaded
  • Style: GRLA
  • Shape: LA
  • Number of Hubs: 3
  • Conduit Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
  • Composition: Aluminum
  • Cover Composition: Aluminum
  • Cover Included: Yes
  • Cover Type: Blank
  • Gasket Included: Yes
  • Protection Rating: Indoor, Outdoor
  • Approvals: CSA, UL
  • Comments: Corrossion, impact & shock resistance
  • Net Weight: 0 lbs
  • Gross Weight: 1.25 lbs
  • Product Series: GR
  • Manufacturer Part Number: GRLA75A
  • Manufacturer: Appleton
  • Family Series: Appleton Electrical Boxes, GR Series
  • Description: Explosionproof Conduit Outlet Box, Style LA, Hub Size 3/4 Inch, Hub Type External, Number of Hubs 3, Hub Location 2 Side, 1 Down, Capacity 18 Cu Inch, Shape Round, Cover Type Externally Threaded, Cover Opening Diameter 3.38 Inch, Enclosure Class I Div 1
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение, учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?

Если вы не нашли продукцию бренда Appleton на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.

Заказать товар Заказать товар
Appleton GRLA75A
Electrical Boxes, GR Series Item # GRLA75A 3/4 GR UNILET TYPE LA Explosionproof, dust‑ignitionproof Ten hub arrangements with integral mounting flange and covers Malleable iron bodies have high tensile strength, ductility and provides great resistance to corrosion, impact, and shock Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity Internally threaded body with externally threaded cover Covers have pry notches for bar or wrench Accommodate sealing, dome, hub and union hub covers, and canopies Standard o‑rings provide raintight fit; NEMA 3, 4 Internal ground screw standard Smooth, rounded integral bushing in each hub type box protects conductor insulation Used with threaded metal conduit for general purpose wiring Function as sealing fittings when used with sealing covers Appleton explosionproof and dust‑ignitionproof GR conduit outlet boxes are furnished with internal ground screw and O‑ring. They are ideal for use in indoor and outdoor classified locations. These corrosion‑resistant outlet boxes provide access for maintenance, allow the connection of different lengths of conduit, and for changing the direction of conduit.
