Технические характеристики VMV4LCP5BH
Раздел
Светильники
Подраздел
Appleton
Вес
-
Manufacturer Part Number: VMV4LCP5BH
-
Manufacturer: Appleton
-
Product Series: Contender
-
Family Series: Appleton Light Fixtures, Contender Series
-
Description: CONTENDER LED LUMINAIRE, 4000 LUMEN, 5000K COOL WHITE COLOR TEMPERATURE, NEMA TYPE V, CLEAR POLYCARBONATE GLOBE, 347-480VAC, 50/60HZ
-
Lamp Included: Yes
-
Ballast Type: Integrated
-
Voltage: 347-480 VAC
-
Color Temperature: 5,000 °K
-
Style: Industrial
-
Material: Aluminum
-
Lens Material: Polycarbonate
-
Lamp Type: LED
-
Power: 176 W
-
Light Output: 20,600
-
Mounting: Wall
-
Guarded: No
-
Junction Box: No
-
Protection Rating: IP66, IP67
-
Enclosed: Yes
-
Gasket Included: Yes
-
Marine Rated: Yes
-
Wet Locations: Yes
-
NEMA Rating: NEMA 3R, NEMA 4, NEMA 4X
-
Temperature Code: T4, T4A, T5, T6
-
Nominal Voltage: 347 VAC, 480 VAC
-
Approvals: CSA, UL
-
Net Weight: 0 lbs
-
Gross Weight: 16.25 lbs
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о
стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение,
учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?
Если вы не нашли продукцию бренда Appleton на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.
Заказать товар
Заказать товар

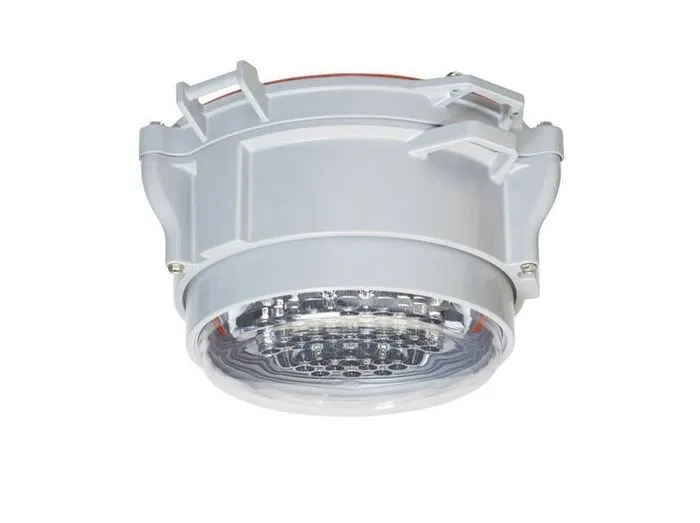

Appleton VMV4LCP5BH
Light Fixtures, Contender Series
Item #
VMV4LCP5BH
CNTLED, 4000LM, CW, PC, 347-480V
Explosionproof, Dust‑Ignitionproof. Ideal for installation in chemical and petrochemical plants, refineries and other process industries
Enclosures have external mounting lugs for ease of mounting
Smooth, rounded integral bushing in each hub protects conductor insulation
Enclosures furnished with internal ground screw
20 Amp and 30 Amp units available for use with 120‑277 Vac
Smooth ground mating surfaces assure flame‑tight joint between cover and mounting enclosure
Stainless steel hex head cap screws for attaching cover to mounting enclosure
Choice of front‑operating or side rocker arm handle; each may be locked in ON or OFF position
Each handle has close‑tolerance threaded stainless steel shaft to meet Explosionproof requirements
Enclosures furnished with internal ground screw
Appleton explosionproof, dust‑ignitionproof Contender Series factory sealed front operated tumbler switches are designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of lighting and light power loads. They are designed for use in classified areas where ignitable vapors, gases or highly combustible dusts are present such as chemical and petrochemical plants, refineries and other process industries.
