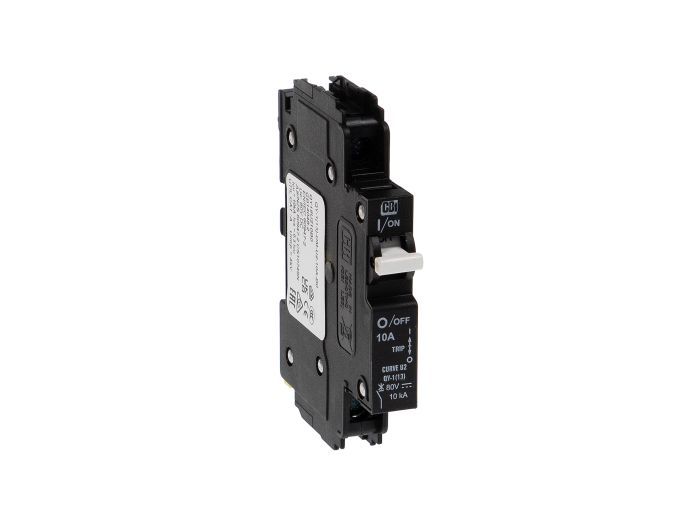

ASI-Automation Systems Interconnect QY113DMU210
Артикул:
QY113DMU210
Изготовитель:
ASI-Automation Systems Interconnect
✅ Под заказ
ЗАКАЗАТЬ
ЗАКАЗАТЬ
Технические характеристики QY113DMU210
Раздел
Миниатюра
Подраздел
ASI-Automation Systems Interconnect
Вес
-
Poles: 1
-
Current Rating: 10 A
-
Max Voltage: 80 VDC
-
Trip Curve: KM
-
Trip Unit: Fixed Hydraulic / Fixed Magnetic
-
Mounting: DIN Rail
-
Neutral Pole: No
-
Terminal Type: Screw
-
Auxiliary Switch: No
-
Shunt Trip: No
-
Undervoltage Release: No
-
Alarm Switch: No
-
UL Standard: 489A
-
Approvals: UL
-
Net Weight: 0.23 lbs
-
Gross Weight: 0.23 lbs
-
Description: 10 Amp, 1 Pole Miniature DC Circuit Breaker, Medium Trip Curve, UL489A, 13 mm wide
-
Manufacturer Part Number: QY113DMU210
-
Manufacturer: ASI-Automation Systems Interconnect
-
Product Series: QY
-
Family Series: ASI-Automation Systems Interconnect Circuit Breakers, QY Series
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о
стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение,
учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?
Если вы не нашли продукцию бренда ASI-Automation Systems Interconnect на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.
Заказать товар
Заказать товар
ASI-Automation Systems Interconnect QY113DMU210
Circuit Breakers, QY Series
Item #
QY113DMU210
10 Amp, 1 Pole Miniature DC Circuit
Busbar and Lockout/Tagout Accessories Available
Finger Safe Screw Clamp Terminals
Line and Load Terminals Included
Compact, Space Saving Design
DIN Rail Mounting
1 to 50 Amps
The QY series of MCBs from ASI are approved for branch circuit protection, and at only 13mm wide the QY series of UL 489 listed circuit breakers are some of the highest density MCBs of their type on the market. The QY series is DC rated, and are only available in single pole models. Current ratings range from 1 to 50 Amps. Accessories such as busbars and lockout/tagout adapters are available for use with the QY series.
