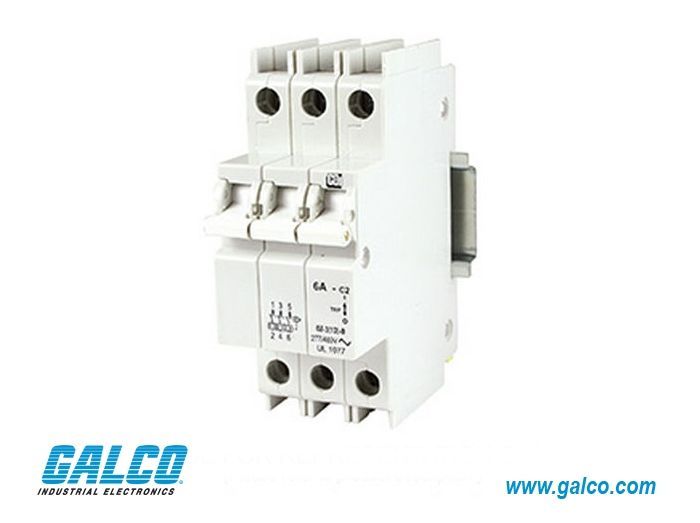

ASI-Automation Systems Interconnect QZ313D202

Артикул: QZ313D202
Изготовитель: ASI-Automation Systems Interconnect
✅ Под заказ
ЗАКАЗАТЬ ЗАКАЗАТЬ

Технические характеристики QZ313D202

Раздел
Миниатюра
Подраздел
ASI-Automation Systems Interconnect
Вес
  • Poles: 3
  • Current Rating: 2 A
  • Max Voltage: 480 VAC
  • Trip Curve: 2
  • Trip Unit: Fixed Hydraulic / Fixed Magnetic
  • Mounting: DIN Rail
  • Neutral Pole: No
  • Terminal Type: Screw
  • Auxiliary Switch: No
  • Shunt Trip: No
  • Undervoltage Release: No
  • Alarm Switch: No
  • UL Standard: 1077
  • Approvals: CE, CSA, UL, VDE
  • Net Weight: 0 lbs
  • Gross Weight: 0 lbs
  • Description: 25 Amp Mini Circuit Breaker, 2 Pole, 277/480 Vac, Medium Trip Curve, 5 kA Interrupt Capacity, UL 1077
  • Manufacturer Part Number: QZ313D202
  • Manufacturer: ASI-Automation Systems Interconnect
  • Product Series: QZ
  • Family Series: ASI-Automation Systems Interconnect Circuit Breakers, QZ Series
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение, учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?

Если вы не нашли продукцию бренда ASI-Automation Systems Interconnect на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.

Заказать товар Заказать товар
ASI-Automation Systems Interconnect QZ313D202
Circuit Breakers, QZ Series Item # QZ313D202 25 Amp Mini Circuit Breaker, 2 Pole, Busbar and Lockout/Tagout Accessories Available Finger Safe Screw Clamp Terminals Line and Load Terminals Included Compact, Space Saving Design DIN Rail Mounting 1 to 50 Amps When space is a prime concern, the QZ series of circuit breakers from ASI can be an answer to the problem. At only 13mm wide they can save up to 28% of the space required by 18mm circuit breakers. Available in one, two, and three pole versions the QZ series is UL 1077 recognized and comes with ratings ranging from 1 Amp to 50 Amps. The design of the QZ series of circuit breakers allows the user to connect wire directly with a screw clamp or those that are equipped with crimped ring tongue or spade terminals. Accessories like busbars and lockout/tagout adapters are available for use with QZ MCBs.
