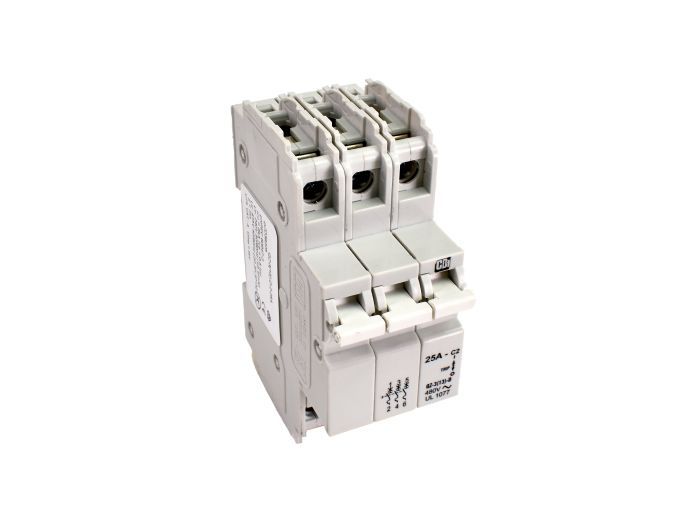

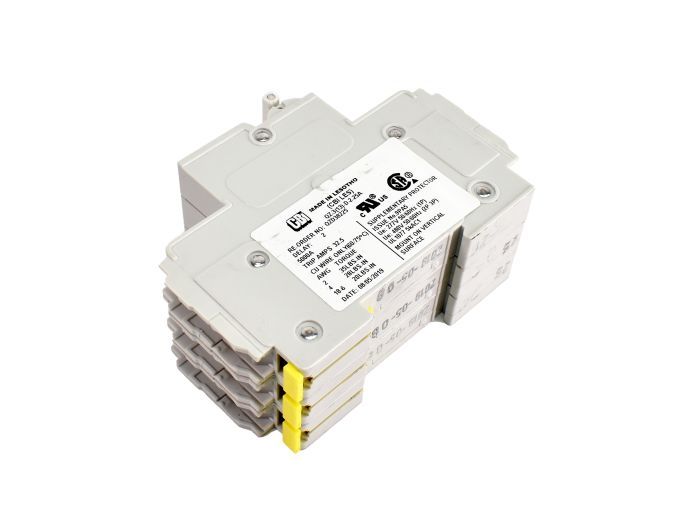

ASI-Automation Systems Interconnect QZ313D225
Артикул:
QZ313D225
Изготовитель:
ASI-Automation Systems Interconnect
✅ Под заказ
ЗАКАЗАТЬ
ЗАКАЗАТЬ
Технические характеристики QZ313D225
Раздел
Миниатюра
Подраздел
ASI-Automation Systems Interconnect
Вес
-
Poles: 3
-
Current Rating: 25 A
-
Max Voltage: 480 VAC
-
Trip Curve: 2
-
Trip Unit: Fixed Hydraulic / Fixed Magnetic
-
Mounting: DIN Rail
-
Neutral Pole: No
-
Terminal Type: Screw
-
Auxiliary Switch: No
-
Shunt Trip: No
-
Undervoltage Release: No
-
Alarm Switch: No
-
UL Standard: 1077
-
Approvals: CE, CSA, UL, VDE
-
Net Weight: 0.67 lbs
-
Gross Weight: 0.67 lbs
-
Description: 10 Amp Mini Circuit Breaker, 2 Pole, 277/480 Vac, Long Trip Curve, 26mm Wide, 5 kA Interrupt Capacity, UL
-
Manufacturer Part Number: QZ313D225
-
Manufacturer: ASI-Automation Systems Interconnect
-
Product Series: QZ
-
Family Series: ASI-Automation Systems Interconnect Circuit Breakers, QZ Series
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о
стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение,
учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?
Если вы не нашли продукцию бренда ASI-Automation Systems Interconnect на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.
Заказать товар
Заказать товар
ASI-Automation Systems Interconnect QZ313D225
Circuit Breakers, QZ Series
Item #
QZ313D225
10 Amp Mini Circuit Breaker, 2 Pole,
Busbar and Lockout/Tagout Accessories Available
Finger Safe Screw Clamp Terminals
Line and Load Terminals Included
Compact, Space Saving Design
DIN Rail Mounting
1 to 50 Amps
When space is a prime concern, the QZ series of circuit breakers from ASI can be an answer to the problem. At only 13mm wide they can save up to 28% of the space required by 18mm circuit breakers. Available in one, two, and three pole versions the QZ series is UL 1077 recognized and comes with ratings ranging from 1 Amp to 50 Amps. The design of the QZ series of circuit breakers allows the user to connect wire directly with a screw clamp or those that are equipped with crimped ring tongue or spade terminals. Accessories like busbars and lockout/tagout adapters are available for use with QZ MCBs.
