ATC-Automatic Timing & Control 365C-300-N-30-PX

Артикул: 365C-300-N-30-PX
Изготовитель: ATC-Automatic Timing & Control
✅ В наличии
ЗАКАЗАТЬ ЗАКАЗАТЬ

Технические характеристики 365C-300-N-30-PX

Раздел
Заданные таймеры
Подраздел
ATC-Automatic Timing & Control
Вес
  • Description: LONG RANGER TIMER, 24VDC, W/DISPLAY, ON-DELAY/TIME UP OR DOWN AND STOP
  • Voltage: 24 VDC
  • Nominal Voltage: 24 VDC
  • Mounting: Through Panel
  • Number of Digits: 3
  • Time Format: Hours:Minutes:Seconds
  • Display Type: LED
  • Termination: Screw
  • NEMA Rating: NEMA 12
  • Output: (1) DPDT Relay Form C
  • Status Indicator: No
  • Approvals: CSA, UR
  • Net Weight: 0.875 lbs
  • Gross Weight: 0.875 lbs
  • Manufacturer Part Number: 365C-300-N-30-PX
  • Manufacturer: ATC-Automatic Timing & Control
  • Product Series: 365C
  • Family Series: ATC-Automatic Timing & Control Timers, 365C Series
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение, учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?

Если вы не нашли продукцию бренда ATC-Automatic Timing & Control на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.

Заказать товар Заказать товар
ATC-Automatic Timing & Control 365C-300-N-30-PX

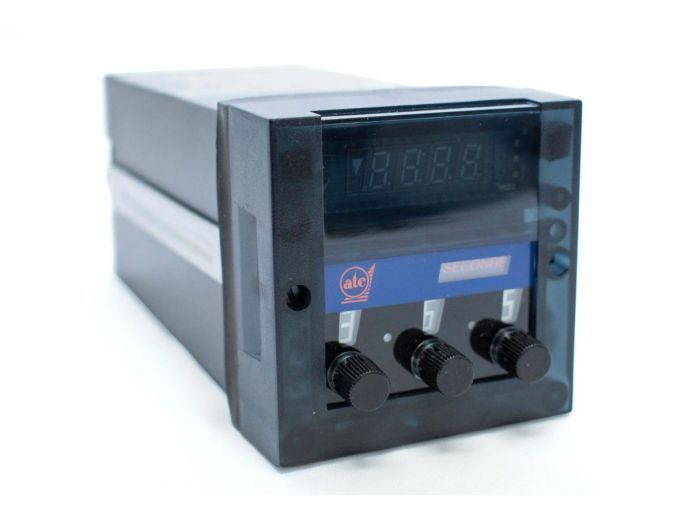

Timers, 365C Series Item # 365C-300-N-30-PX LONG RANGER TIMER, 24VDC, W/DISPLAY, Keeps track of the set point throughout the time cycle Positive reset time and pulse length Wide range Programmable display Noise immunity Reliability and ruggedness Compact, plug‑in and dust‑tight Self diagnostics The ATC 365C is the latest generation in the popular long‑ranger timer series.The microprocessor‑based digital timer is equipped with three rotary knobs for setting and adjustment of the Preset.The Preset can be any three‑digit value from .01 SEC to 999 HR.The Decimal and Range are switch selectable.The high‑intensity blue vacuum fluorescent display is DIP switch selectable to Timeup or Timedown.Two heavy‑duty 7A DPDT relays provide instantaneous,interval or delayed output control.Plug‑in panel mounting allows easy replacement without the removal of field wiring.
