Технические характеристики BSP00Y4
Раздел
Преобразователи давления
Подраздел
Balluff
Вес
-
Manufacturer Part Number: BSP00Y4
-
Manufacturer: Balluff
-
Product Series: Transducers
-
Family Series: Balluff Transducers, Transducers Series
-
Description: Measuring range = 0...10 bar Accuracy = �0.5 % FSO BFSL Overload pressure = 20 bar Burst pressure = 35 bar Operating voltage Ub = 18...30 VDC Interface = IO-Link 1.1 Analog output = Analog, voltage/Analog, current select
-
Accuracy: 0.50%
-
Pressure Range (Gauge): 0-10 bar
-
Max Pressure (Gauge): 10 bar
-
Input: 18-30 VDC
-
Output: 0-10 VDC, 4-20 mA
-
Electrical Connection: M12 Connector
-
Connection: G 1/4
-
Operating Temperature: -40-257 °F
-
Protection Rating: IP67
-
Approvals: CE, cULus, WEEE
-
Comments: G 1/4" (DIN 3852)
-
Net Weight: 0.53 lbs
-
Gross Weight: 0.645 lbs
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о
стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение,
учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?
Если вы не нашли продукцию бренда Balluff на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.
Заказать товар
Заказать товар

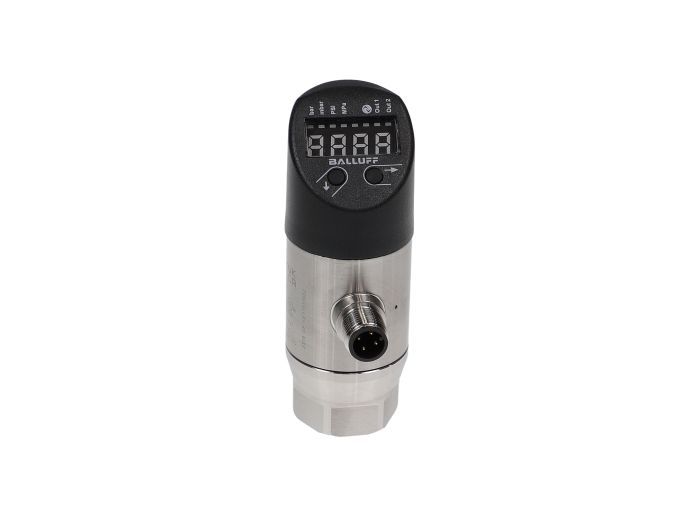

Balluff BSP00Y4
Transducers, Transducers Series
Item #
BSP00Y4
BSP B010-EV009-P00S2B-S4
Balluff’s pressure sensors monitor pressures of gaseous and fluid media; they can also be used in a variety of ways in factory automation. Available with stainless steel housings are designed for the demanding requirements of extended temperature ranges and harsh environments.
With your rotational housing and the simple, VDMA-compliant programming, they can be flexibly mounted as well as conveniently serviced. Using the bright LED Display, you can track current system pressure quickly and reliably.
The most important benefits
• Large, brightly illuminated LED display
• Compact and robust as a transmitter
• Pressure range –1…600 bar
• Process connection G1/4“, G1/2“,R1/4“, NPT1/4“
• Flush with the front surface in G1/2“ and Tri-Clamp 1.5“
• Compact with M 12 connection
• Output as 4…20 mA, 0...10 V, switching points (NPN/PNP) and IO-Link
• Fluid temperature –40…+125 °C
• Enclosure rating IP67 and IP69K
• UL approval
• Stainless steel or PVDF process connection
