Barksdale Control Products 425H3-06-W60-U
Артикул:
425H3-06-W60-U
Изготовитель:
Barksdale Control Products
✅ В наличии
ЗАКАЗАТЬ
ЗАКАЗАТЬ
Технические характеристики 425H3-06-W60-U
Раздел
Преобразователи давления
Подраздел
Barksdale Control Products
Вес
-
Description: Transducer, Pressure, Amplified
-
Type: General Industrial (Amplified)
-
Pressure Range (Gauge): 0-200 psi
-
Max Pressure (Gauge): 200 psi
-
Input: 12-32 VDC
-
Output: 4-20 mA
-
Electrical Connection: Cable - Jacketed, Shielded
-
Length: 5 '
-
Connection: 1/4-18 NPT Male
-
NEMA Rating: NEMA 4
-
Operating Temperature: '-40-185 °F
-
Approvals: CE, cUL, UL
-
Net Weight: 0 lbs
-
Gross Weight: 0 lbs
-
Manufacturer Part Number: 425H3-06-W60-U
-
Manufacturer: Barksdale Control Products
-
Product Series: 420
-
Family Series: Barksdale Control Products Transducers, 420 Series
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о
стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение,
учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?
Если вы не нашли продукцию бренда Barksdale Control Products на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.
Заказать товар
Заказать товар

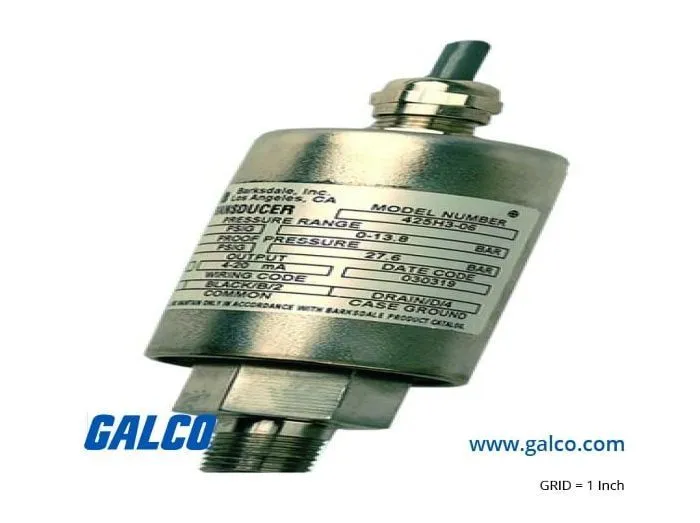

Barksdale Control Products 425H3-06-W60-U
Transducers, 420 Series
Item #
425H3-06-W60-U
Transducer, Pressure, Amplified
Diffused Silicon Sensor for High Accuracy and Reliability
Built‑in High Pressure Snubber (2000psi and Above)
General Purpose, Industrial Grade Transducer
Rugged Stainless Steel Construction
UL and cUL Approved
Barksdale's Series 420 and 422 Transducers are general purpose, industrial grade transducers, ideal for use in general industrial applications. Wetted parts are constructed of 17‑4PH and 300 Series Stainless Steel, with NEMA 3 enclosures constructed of 304 Stainless Steel. These units use a stable, diffused silicon sensor that achieve .25% accuracy, have pressure ranges from 0‑10,000 psi and are available with either 0 ‑ 30 millivolt or 0 ‑ 100 millivolt ratiometric output. High pressure snubbers are standard on units at 2,000 psi and above.
Barksdale's Series 423 and 426 Transducers and 425 Transmitters are general purpose, industrial grade transducers, ideal for use in general industrial applications when a robust transducer is required. Wetted parts are constructed of 17‑4PH and 300 Series Stainless Steel, with NEMA 4 enclosures constructed of 304 Stainless Steel. These units feature a stable, diffused silicon sensor that achieves .25% accuracy, have pressure ranges from 0‑10,000 psi and are available in 5V, 10V or 4‑20MA outputs. High pressure snubbers are standard on units at 2,000 psi and above. Optional surge voltage protection to 6kV is available. A variety of process fittings and electrical connections are available to meet your needs.
