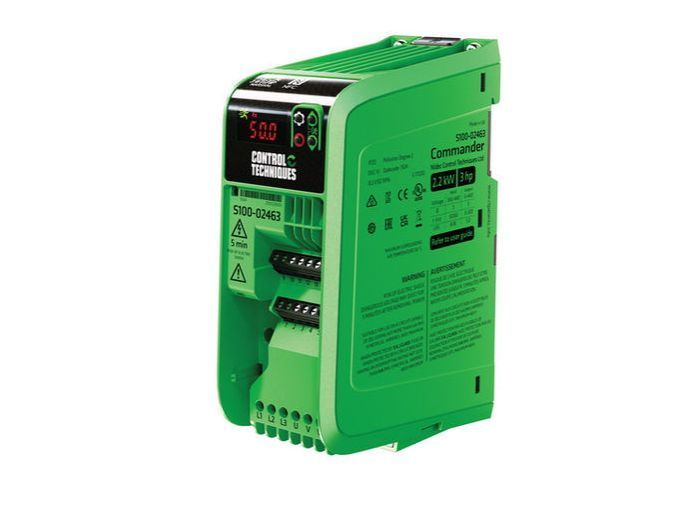

Control Techniques S100-03123-0B0000

Артикул: S100-03123-0B0000
Изготовитель: Control Techniques
✅ В наличии
ЗАКАЗАТЬ ЗАКАЗАТЬ

Технические характеристики S100-03123-0B0000

Раздел
Переменный ток
Подраздел
Control Techniques
Вес
  • Manufacturer Part Number: S100-03123-0B0000
  • Manufacturer: Control Techniques
  • Product Series: Commander S
  • Family Series: Control Techniques Drives, Commander S Series
  • Description: Drive, AC, 1.0HP, 100V, 4.2A, CT, OP 120Vin 1PH W/C3 EMC Filter 7.6in.Hx3.5in.Wx5.2in.D
  • Phase: 1
  • HP (Constant Torque Rating): 1 hp
  • Amps (Constant Torque Rating): 4.2 A
  • Brake: DC Injection
  • Closed Loop: No
  • AC Line Regenerative: No
  • Operator Controls: Built In
  • Motor Control-Max Level: V/Hz (Scalar)
  • Mounting: Panel
  • Nominal Input Voltage: 120 VAC
  • AC Voltage: 100-120 VAC
  • Frequency: 300 Hz
  • Frame Size: 3
  • Protection Rating: IP20
  • Dynamic Braking: Not Included
  • Height: 7.56 "
  • Width: 3.54 "
  • Depth: 5.2 "
  • Net Weight: 2.2 lbs
  • Gross Weight: 2.64 lbs
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение, учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?

Если вы не нашли продукцию бренда Control Techniques на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.

Заказать товар Заказать товар
Control Techniques S100-03123-0B0000
Drives, Commander S Series Item # S100-03123-0B0000 Drive, AC, 1.0HP, 100V, 4.2A, CT, OP 0.18kW ‑ 4kW / .25hp ‑ 5hp 45 – 66Hz IP20 Rating 100~120V, 200~240V, & 380~480V Options Linear V to F Square V to F Resistance Compensation Take charge of motor control and energy savings with the latest addition to the Control Techniques portfolio. With a feature set optimized for simple applications, Commander S provides a cost‑effective solution for installations that require plug‑and‑play convenience straight from the box. Commander S is the first drive to come with an app interface as a standard feature. The MARSHAL App is our revolutionary way to interface with the drive covering commissioning, monitoring, diagnostics and support. Control Techniques has a long tradition of challenging the status‑quo with innovative ideas and making a profound impact in the drives industry. And they’ve done it again with MARSHAL: Control Techniques is the 1st drive supplier to implement NFC technology as standard on a drive and offer the MARSHAL App interface at no extra cost. MARSHAL App Seamless Commissioning Cloning Security Diagnostics Data Sharing MARSHAL is your drive expert in the field. This rich content interface means you can commission, clone, diagnose system issues and monitor the drive in just a few screen taps.
