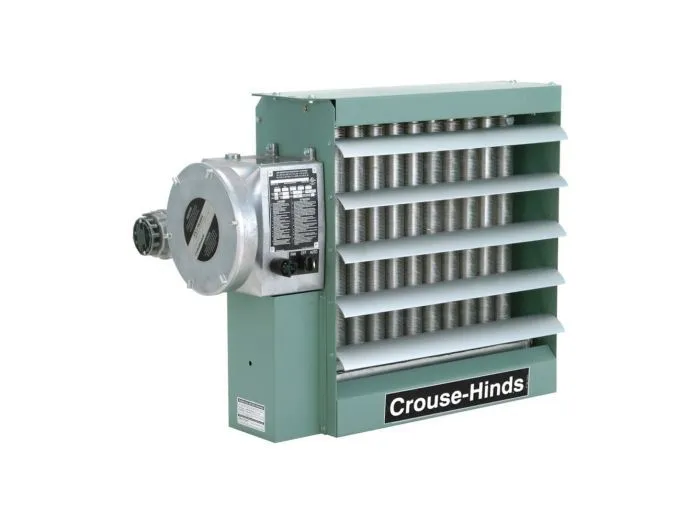

Crouse Hinds EXH5 480360 030

Артикул: EXH5 480360 030
Изготовитель: Crouse Hinds
✅ В наличии
ЗАКАЗАТЬ ЗАКАЗАТЬ

Технические характеристики EXH5 480360 030

Раздел
Комфортные обогреватели
Подраздел
Crouse Hinds
Вес
  • Manufacturer Part Number: EXH5 480360 030
  • Manufacturer: Crouse Hinds
  • Product Series: EXH
  • Family Series: Crouse Hinds Heaters, EXH Series
  • Description: Eaton Crouse-Hinds series EXH electric air heater, 60 Hz, 10,250 BTU/hr, 3 kW, Steel, 3.6A max., Three-phase, 11.2°F 6.2°C temperature rise, 480 Vac
  • Kilowatts: 3 kW
  • Current Rating: 3.6 A
  • Voltage: 480 V
  • Phase: 3
  • BTU/h: 10,250 BTUs
  • Composition: Steel
  • Horsepower: 1/2 hp
  • Speed: 1,725 RPM
  • RPM: 1,725 RPM
  • Air Flow: 500 CFM
  • Thermostat: No
  • Application: Hazardous Location
  • Approvals: CSA, UL
  • Net Weight: 140 lbs
  • Gross Weight: 140 lbs
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение, учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?

Если вы не нашли продукцию бренда Crouse Hinds на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.

Заказать товар Заказать товар
Crouse Hinds EXH5 480360 030
Heaters, EXH Series Item # EXH5-480360-030 EXH EXP ELECTRIC HEATER 480V 3PH 3 KW EXH Explosionproof Electric Air Heaters Explosionproof Dust-ignitionproof Applications: EXH explosionproof electric heaters are used: • In areas made hazardous by the presence of flammable gases and vapors, and combustible dusts • For rugged locations, including oil refineries, petrochemical plants, rigs, pumping stations, turbine compressors, pulp and paper mills, coal mines, grain elevators, etc. • In areas where flammable vapors or gases or highly combustible dusts may be present due to accidental or abnormal conditions • For standby heat to prevent process heat loss, or for personnel comfort during maintenance/repair operations Features: • Split fan guard for easy access to fan • Compact design makes handling during installation easy • Evacuated cores heat up quickly with even heat distribution • Larger models offer greater kilowatt range, providing more economical means to heat large areas • Permanently sealed cores improve reliability and make field servicing easier • Control box provides easy access for installation and maintenance Certifications and Compliances: • Class I, Divisions 1 & 2, Groups C, D • Class II, Division 1, Groups E, F, G • Class II, Division 2, Groups F, G • UL standard: UL823 • CSA standard: C22.2 Nos. 25, 30, 46 • NEMA 7CD, 9EFG
