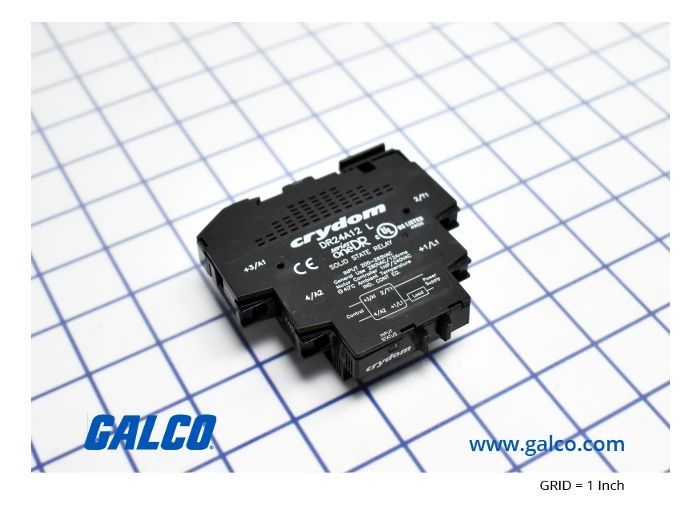

Crydom DR24A12

Артикул: DR24A12
Изготовитель: Crydom
✅ В наличии
ЗАКАЗАТЬ ЗАКАЗАТЬ

Технические характеристики DR24A12

Раздел
Реле
Подраздел
Crydom
Вес
  • Description: 240VAC/12A,200-265VAC in,18mm,DR SSR
  • Circuit: 1NO
  • Mounting: DIN Rail, Panel
  • Status Indicator: Yes
  • Auxiliary Switch: No
  • Number of Circuits: 1
  • Input Signal: 120 VAC, 24-280 VAC, 240 VAC
  • Input Polarity: AC
  • Output Voltage: 200-265 VAC
  • Nominal Output Voltage: 208 VAC, 277 VAC, 240 VAC
  • Current Rating: 12 A
  • Transient Overvoltage: 600 V
  • Termination: Screw Terminal
  • Switching Type: Zero Cross
  • Integral Heat Sink: No
  • MOV: No
  • Snubber: No
  • Net Weight: 0.175 lbs
  • Gross Weight: 0.195 lbs
  • Manufacturer Part Number: DR24A12
  • Manufacturer: Crydom
  • Product Series: DR
  • Family Series: Crydom Relays, DR Series
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение, учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?

Если вы не нашли продукцию бренда Crydom на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.

Заказать товар Заказать товар
Crydom DR24A12
Relays, DR Series Item # DR24A12 240VAC/12A,200-265VAC in,18mm,DR SSR Ratings 3, 6, & 12 Amps Load voltage ratings of 1‑60VDC, 1‑100VDC, 24‑280VAC and 48‑600VAC Fits standard 35mm DIN Rail LED input status indicator AC or DC control Zero Voltage (resistive loads) or Instantaneous (inductive loads) turn‑on output Crydoms SeriesOne DR family of DIN Rail mount Solid State Relays incorporate proprietary thermal management technology to achieve exceptional output ratings of 3, 6, and 12 Amps in compact 11mm and 18mm wide housings. This compact SSR is ideal for use in heating, lighting or motion control applications where space may be limited, providing greater power density than other DIN Rail solid state relays. UL and cUL Listed, HP Rated CE & RoHS Compliant UL 508 Endurance Rating for Enhanced Reliability UL Class I and II, Division 2, for Hazardous Locations
