Cutler Hammer, Div of Eaton AN56KN0A
Артикул:
AN56KN0A
Изготовитель:
Cutler Hammer, Div of Eaton
✅ В наличии
ЗАКАЗАТЬ
ЗАКАЗАТЬ
Технические характеристики AN56KN0A
Раздел
Реверс переменного тока
Подраздел
Cutler Hammer, Div of Eaton
Вес
-

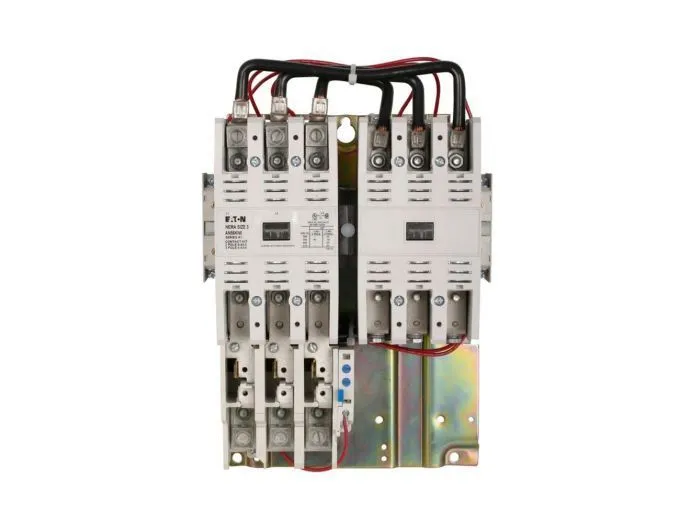

Description: Eaton Freedom NEMA Starter, Full voltage reversing, C306 bi-metal overload relay, NEMA Size 3 open enclosure - 90 A, Horizontal mounting, 120/60 or 110/50 coil voltage
-
Style: Open
-
Industry Standard: NEMA
-
Poles: 3
-
Voltage: 120 VAC
-
Nominal Voltage: 120 VAC
-
Current Rating: 90 A
-
Coil Type: Magnetic
-
Auxiliary Contact: 1NO
-
Overload Type: Interchangeable Bimetallic
-
Overload Series: C306
-
Termination: Screw
-
Mounting: Surface
-
Comments: Heater packs are required and are sold separately. Three heater packs per carton.
-
Net Weight: 20.8 lbs
-
Gross Weight: 20.8 lbs
-
Manufacturer Part Number: AN56KN0A
-
Manufacturer: Cutler Hammer, Div of Eaton
-
Product Series: Freedom
-
Family Series: Cutler Hammer, Div of Eaton Starters, Freedom Series
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о
стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение,
учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?
Если вы не нашли продукцию бренда Cutler Hammer, Div of Eaton на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.
Заказать товар
Заказать товар
Cutler Hammer, Div of Eaton AN56KN0A
Starters, Freedom Series
Item #
AN56KN0A
FDM STR FVR SZ3 120V C306
12~120VDC; 24~600VAC Coils
Up to 450 HP @ 240V
Up to 900 HP @ 480V
UL; CSA Approved
Up to 1350 Amps
Freedom Series contactors feature long life twin break, silver cadmium oxide contacts which provide excellent conductivity and superior resistance to welding and arc erosion. Non‑reversing contactors are most commonly used to switch motor loads in applications where running over current protection is either not required or is provided separately.
2, 3, 4, or 5 Poles
IP20 Finger Protection Shields Available
Designed to 2,000,000 electrical and 20,000,000 mechanical operations at maximum horsepower ratings through 20 HP @ 460V.
Adequate for most general duty control applications.
