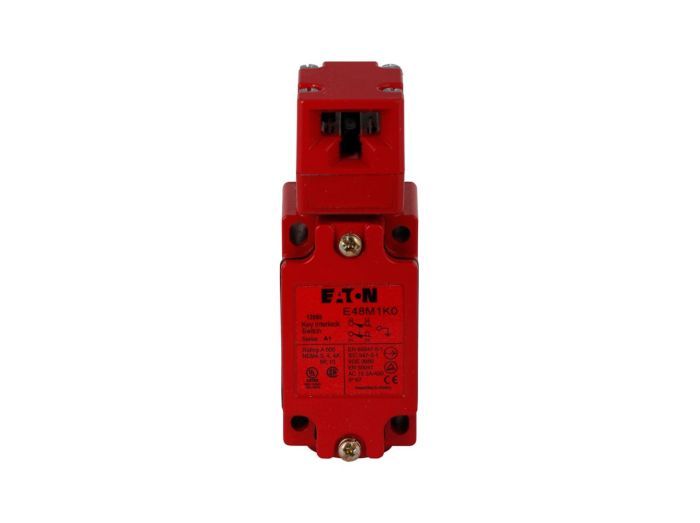

Cutler Hammer, Div of Eaton E48M1K0A

Артикул: E48M1K0A
Изготовитель: Cutler Hammer, Div of Eaton
✅ В наличии
ЗАКАЗАТЬ ЗАКАЗАТЬ

Технические характеристики E48M1K0A

Раздел
Механический
Подраздел
Cutler Hammer, Div of Eaton
Вес
  • Manufacturer Part Number: E48M1K0A
  • Manufacturer: Cutler Hammer, Div of Eaton
  • Product Series: E48NEMA
  • Family Series: Cutler Hammer, Div of Eaton Safety Switches, E48NEMA Series
  • Description: E48 Series Full Size Metal Safety Interlock Switch, Die Cast Aluminum enclosure, 10A max AC, 2 NC, 10A at 600 Vac, Screw Terminals
  • Solenoid Interlocking: No
  • Guard Locking Type: None
  • Switch Contacts: 2NC
  • Extraction Force: 19.6 N
  • Auxiliary Release: No
  • Adjustable Actuator Head: Yes
  • Protection Rating: IP67
  • NEMA Rating: NEMA 13, NEMA 3, NEMA 4, NEMA 4X, NEMA 6P
  • Approvals: CE, CSA, TUV, UL
  • Net Weight: 0.17 lbs
  • Gross Weight: 0.17 lbs
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение, учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?

Если вы не нашли продукцию бренда Cutler Hammer, Div of Eaton на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.

Заказать товар Заказать товар
Cutler Hammer, Div of Eaton E48M1K0A
Safety Switches, E48NEMA Series Item # E48M1K0 SAFETY INTERLOCK SWITCH,2NC CONTACTS Non‑Locking or Mechanical Locking Safety Switches Adjustable Actuator Head for Multiple Approach Directions Positively Driven Contacts Tamper‑Resistant Actuator is Difficult to Defeat with Common Tools UL Listed The E48 Safety Key Interlock Limit Switch is designed to be used with movable guards or covers which must be closed for operational safety. The key portion of the switch is affixed to the movable door, cover, or other such guard. The switch itself is mounted to a rigid portion of the machine. When the guard is opened, the key is removed from the switch, thereby positively breaking the normally closed contacts. This interrupts the control circuit, stopping machine operation. Locking models secure the key in the switch until current is applied and energizes a solenoid.
