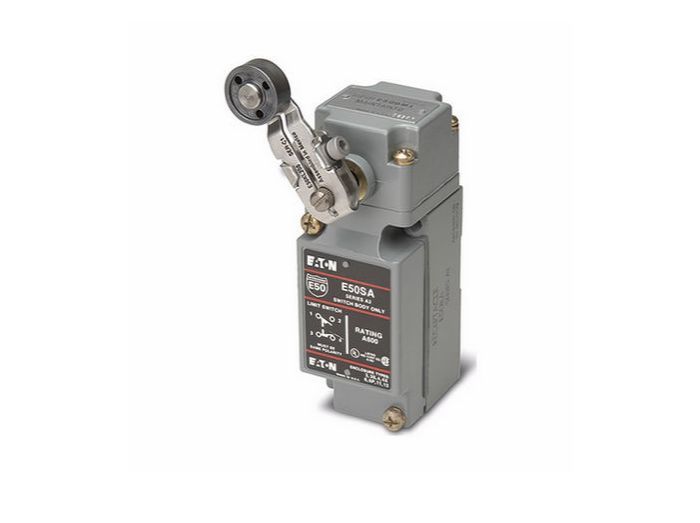

Cutler Hammer, Div of Eaton E50AR16PC-R
Артикул:
E50AR16PC-R
Изготовитель:
Cutler Hammer, Div of Eaton
✅ В наличии
ЗАКАЗАТЬ
ЗАКАЗАТЬ
Технические характеристики E50AR16PC-R
Раздел
Промышленные концевые выключатели
Подраздел
Cutler Hammer, Div of Eaton
Вес
-
Manufacturer Part Number: E50AR16PC-R
-
Manufacturer: Cutler Hammer, Div of Eaton
-
Product Series: E50
-
Family Series: Cutler Hammer, Div of Eaton Limit Switches, E50 Series
-
Description: Eaton E50 Heavy Duty Factory Sealed 6P+ Limit Switch,5 Pin Mini Connector,10A at 240Vac,1A at 250Vdc,1NO-1NC,Die Cast Zinc,NEMA 1,3,3S,4,4X,6,6P,13,IP67,IP69K,10A,1A,10° to 201°F -12° to 94°C,Side Rotary,Standard spring return
-
Actuator Type: Rotary
-
Contacts: 1NO/1NC
-
Contact Rating: Rating @ 250 VAC: 10 A, Rating @ 250 VDC: 1 A
-
Connection Type: 5-Pin 7/8 Inch Receptacle
-
Indicator: No
-
NEMA Rating: NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P NEMA 13, NEMA 3S
-
Material: Zinc
-
Net Weight: 1.275 lbs
-
Gross Weight: 1.275 lbs
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о
стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение,
учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?
Если вы не нашли продукцию бренда Cutler Hammer, Div of Eaton на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.
Заказать товар
Заказать товар
Cutler Hammer, Div of Eaton E50AR16PC-R
Limit Switches, E50 Series
Item #
E50AR16PC-R
E50AR16PC W/SPECIAL WIRING
Heavy‑Duty Plug‑In Type
Zinc Die Cast Construction
NEMA 1,2,3S,4X,6P,13; IP67
Various Termination Types
UL Listed; CSA Certified
Cutler‑Hammer E50 Modular Plug‑In Limit Switches are the industry standard with versatility of design and high reliability for low maintenance, installation and inventory costs. Standard Viton gaskets, seals and boots and a zinc die cast enclosure provide exceptional chemical resistance to the common coolants, cleansing agents, and hydraulic fluids found in machine tool, automotive, waste water treatment and other heavy‑duty industrial applications. Mounting dimensions accommodate both U.S. and DIN standards for easy retrofit installations. Super bright 24~120V AC/DC LED indicating light versions simplify setup and troubleshooting operations.
Modular Plug‑In Components
Keyed, Four Direction Head Positioning
Standard 90 Degree Total Travel
