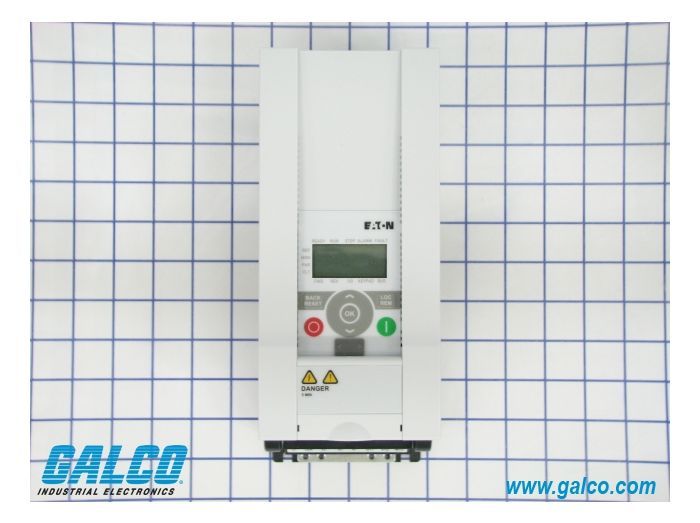

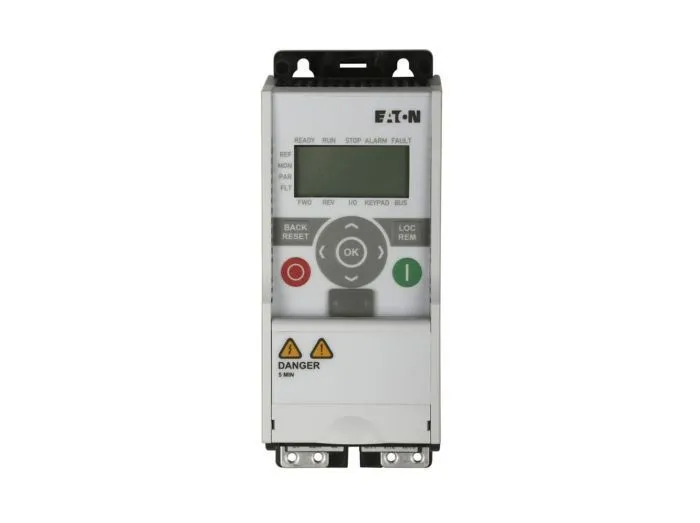

Cutler Hammer, Div of Eaton EATON-MXE34AB7D6F00
Артикул:
EATON-MXE34AB7D6F00
Изготовитель:
Cutler Hammer, Div of Eaton
✅ В наличии
ЗАКАЗАТЬ
ЗАКАЗАТЬ
Технические характеристики EATON-MXE34AB7D6F00
Раздел
Переменный ток
Подраздел
Cutler Hammer, Div of Eaton
Вес
-
Phase: 3
-
HP (Constant Torque Rating): 4 hp
-
Amps (Constant Torque Rating): 7.6 A
-
Brake: DC Injection, Dynamic Braking Transistor Included
-
Closed Loop: No
-
AC Line Regenerative: No
-
Operator Controls: Built In
-
Motor Control-Max Level: Open Loop Vector (Sensorless Vector)
-
Mounting: Panel
-
Nominal Input Voltage: 380 VAC, 415 VAC, 480 VAC
-
AC Voltage: 380-480 VAC
-
Frequency: 320 Hz
-
Frame Size: FS3
-
Protection Rating: IP20
-
Dynamic Braking: Included
-
Height: 9.96 "
-
Width: 3.94 "
-
Depth: 4.41 "
-
Comments: DIN rail and screw mountable, conformal coated boards. Includes EMC filter and DB transistor.
-
Net Weight: 2.2 lbs
-
Gross Weight: 3 lbs
-
Description: Eaton M-Max Series sensorless vector adjustable frequency drive, Three-phase in, three-phase out, 7.6A, 4.0HP, FS3, W EMC, 480V input and output voltage
-
Manufacturer Part Number: EATON-MXE34AB7D6F00
-
Manufacturer: Cutler Hammer, Div of Eaton
-
Product Series: M-Max
-
Family Series: Cutler Hammer, Div of Eaton Drives, M-Max Series
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о
стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение,
учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?
Если вы не нашли продукцию бренда Cutler Hammer, Div of Eaton на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.
Заказать товар
Заказать товар
Cutler Hammer, Div of Eaton EATON-MXE34AB7D6F00
Drives, M-Max Series
Item #
MMX34AA7D6F0-0
MMX 480V,7.6A,4.0HP,FS3,W EMC
Ease of Use ‑ Preset Application Macros, Startup Wizard, Diagnostic Capabilities
Compact, Space‑Saving Design
Rugged and Reliable ‑ 150% for One Minute, 50C Rated, Conformal Coated Boards
DIN Rail and Screw Mountable
Side‑by‑Side Installation
Eaton's M‑Max Series Sensorless Vector Adjustable Frequency AC Drives are the next generation of drives specifically engineered for today's machinery applications. These microprocessor‑based drives have standard features that can be programmed to tailor the drive's performance to suit a wide variety of application requirements. The M‑Max product line uses a 32‑bit microprocessor and insulated gate bipolar transistors (IGBTs) that provide quiet motor operation, high motor efficiency, and smooth low‑speed performance. The size and simplicity of the M‑Max make it ideal for hassle‑free installation. Models rated at 575 volts, three‑phase, 50/60 Hz are available in sizes ranging from 1 to 7‑1/2 hp. Models rated at 480 volts, three‑phase, 50/60 Hz are available in sizes ranging from 1/2 to 10 hp. Models rated at 240 volts, single‑ or three‑phase, 50/60 Hz are available in sizes ranging from 1/4 to 3 hp. Models rated at 115 volts, single‑phase, 50/60 Hz are available in the 1/4 to 1‑1/2 hp size range.
The standard drive includes a digital display, and operating and programming keys on a visually appealing, efficient application programming interface. The display provides drive monitoring, as well as adjustment and diagnostic information. The keys are used for digital adjustment and programming of the drive, as well as for operator control. Separate terminal blocks for control and power wiring are provided for customer connections.
Industry Leading Efficiency Delivers Energy Savings to the Customer
Integrated EMC Filters Make the Unit Suitable for Commercial and Industrial Networks
Temperature‑Controlled Fan
RS‑485/Modbus as Standard
PID Controller as Standard
Several Fieldbus Options
