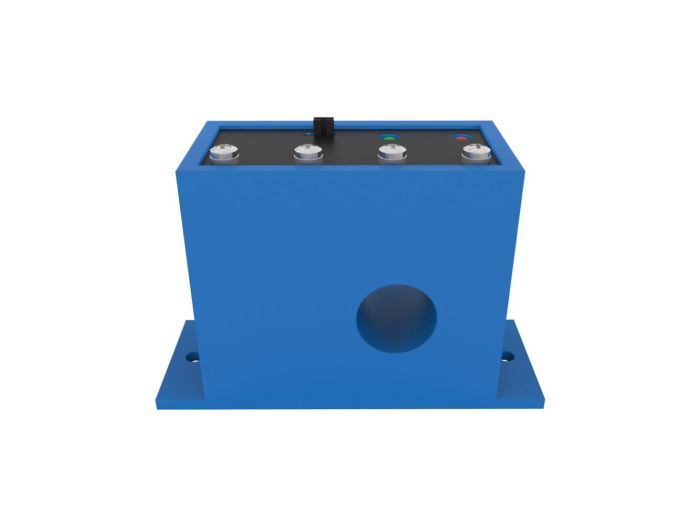

Cutler Hammer, Div of Eaton EGF3NODCNET3
Артикул:
EGF3NODCNET3
Изготовитель:
Cutler Hammer, Div of Eaton
✅ Под заказ
ЗАКАЗАТЬ
ЗАКАЗАТЬ
Технические характеристики EGF3NODCNET3
Раздел
Замыкание на землю
Подраздел
Cutler Hammer, Div of Eaton
Вес
-
Description: Eaton Current Watch Series Ground Fault Sensor UL94 V0 Flammability Rated Plastic enclosure, 0.15A max DC, Isolated Solid State Relay, 0.15A at 30Vdc, Screw Terminals, 120 Vac input
-
Split Core: No
-
Power Supply: 120 VAC
-
Output Type: Solid State
-
Output Rating: 1 A @ 240 V AC
-
Setpoint: Tri-Set Adjustable, 5, 10 or 30 mA
-
Window Size: 0.75 "
-
Contacts: Normally Energized
-
Response Time: 15-200 ms
-
Frequency: 50-400 Hz
-
Status Indicator: Green LED for Power On Status, Red LED for Contact Status
-
Approvals: CE, UL
-
Net Weight: 1 lb
-
Gross Weight: 1 lb
-
Manufacturer Part Number: EGF3NODCNET3
-
Manufacturer: Cutler Hammer, Div of Eaton
-
Product Series: EGF
-
Family Series: Cutler Hammer, Div of Eaton Sensors, EGF Series
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о
стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение,
учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?
Если вы не нашли продукцию бренда Cutler Hammer, Div of Eaton на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.
Заказать товар
Заказать товар
Cutler Hammer, Div of Eaton EGF3NODCNET3
Sensors, EGF Series
Item #
EGF3NODCNET3
PWR SENSOR,GFI,5-10-30MA,SS-DC,NC.,NO
Broad Range of Options to Meet Application Needs
Setpoint options maximize Ease‑of‑Use and Application Flexibility
Compatability with Standard Equipment
Bright Led Status Indicators
UL and CE Approved
The CurrentWatch EGF Series from Eaton's electrical business is a family of ground fault (earth leakage) sensors. Ground fault sensors help protect people, products and processes from damage by ground fault conditions by monitoring all current‑carrying conductors in ground single‑ and three‑phase delta or wye sysetms. The EGF Series is available with either solid‑state or mechanical relay outputs.
The EGF Series with solid‑state outputs offers the benefits of reliable, long‑lasting solid‑state switches. Solid‑state design provides unlimited switch operating life, superior resistance to shock and vibration, zero off‑state leakage, high switch speeds and high input‑output isolations. Solid‑state outputs have solid‑core housings with screw terminals.
The EGF Series with mechanical relay outputs are available in solid‑core housings with a choice of N.O. or N.C. SPST latching relays and a SPDT Form C relay with auto‑reset. All mechanical models can be ordered with a fixed setpoint or with a "tri‑set" option, which provides three factor‑set, field‑adjustable setpoints.
Typical Applications
Personnel Protection‑ Detects sensitive ground fault conditions, which could cause injury to people, and functions as a sensor and alarm trigger when applied as an input to an overall ground fault protection system.
Equipment Protection‑ For applications where personnel protection is not the promary concern, higher setpoint capability helps eliminate nuisance tripping while still providing adequate ground fault detection to protect machine electronics.
Regulatory‑ Meets requirements as stipulated by governmental and industrial regulatory groups for ground fault sensing.
