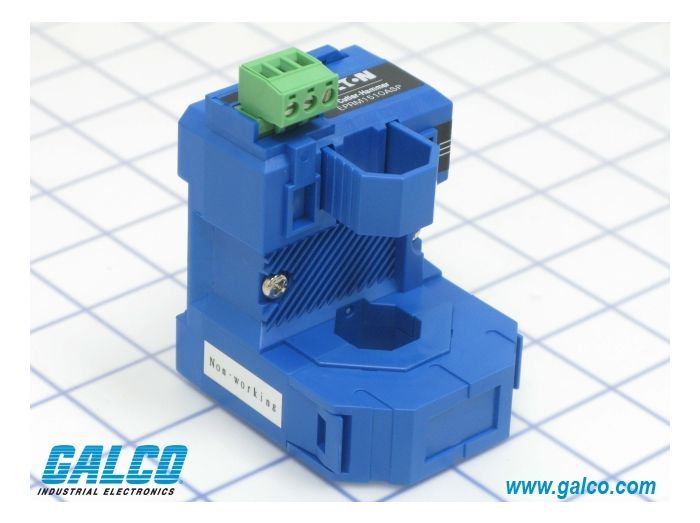

Cutler Hammer, Div of Eaton EPRM1510ASP
Артикул:
EPRM1510ASP
Изготовитель:
Cutler Hammer, Div of Eaton
✅ В наличии
ЗАКАЗАТЬ
ЗАКАЗАТЬ
Технические характеристики EPRM1510ASP
Раздел
Текущий
Подраздел
Cutler Hammer, Div of Eaton
Вес
-
Description: Current Sensor,AC,Din Rail, 50-75-100A,24Vdc Aux Pwr
-
Split Core: Yes
-
Power Supply: 24 VDC Auxiliary Power
-
Window Size: 0.74 "
-
Output: 0-10 VDC, 0-5 VDC
-
Current Rating: 100 A, 50 A, 75 A
-
Response Time: 500 ms
-
Frequency: 20-6,000 Hz
-
Terminals: Top
-
Approvals: CE
-
Net Weight: 0 lbs
-
Gross Weight: 0 lbs
-
Manufacturer Part Number: EPRM1510ASP
-
Manufacturer: Cutler Hammer, Div of Eaton
-
Product Series: EPRM
-
Family Series: Cutler Hammer, Div of Eaton Sensors, EPRM Series
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о
стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение,
учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?
Если вы не нашли продукцию бренда Cutler Hammer, Div of Eaton на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.
Заказать товар
Заказать товар
Cutler Hammer, Div of Eaton EPRM1510ASP
Sensors, EPRM Series
Item #
EPRM1510ASP
Current Sensor,AC,Din Rail,
True RMS Output Models Available
Switch‑Selectable Input and Output Ranges
Application Versatility
Direct Mounting to a DIN Rail
CE Approved
The CurrentWatch EPRM Series from Eaton's electrical business is a family of DIN‑rail compatible, split‑core current sensors. Product features include a large aperture, switch‑selectable inputs and outputs and isolation between primary and secondary circuits. A patented technology eliminates the use of a magnetic core and protects the sensor against saturation and damage, which can occur from continous exposure to high currents. Models available up to 400A and with 0‑5/0‑10 VDC or 4‑20 mA outputs as standard.
Typical Applications
Motor Control Centers‑ Motor status monitoring for pumps and conveyors, and can be used with panel meters for inexpensive indication of motor current status
Automation and Data Loggins‑ Loop‑powered units help conserve data logger batteries and 0‑10v/4‑20 mA outputs are ideal for remote monitoring and alrarm functions and are compatible with most automation systems and PLCs
VFD Controlled Loads‑ Monitoring VFD output indicates how the motor and attached loads are operating
