Cynergy3 Components RSF83Y100R

Артикул: RSF83Y100R
Изготовитель: Cynergy3 Components
✅ Под заказ
ЗАКАЗАТЬ ЗАКАЗАТЬ

Технические характеристики RSF83Y100R

Раздел
Поплавковые выключатели
Подраздел
Cynergy3 Components
Вес
  • Manufacturer Part Number: RSF83Y100R
  • Manufacturer: Cynergy3 Components
  • Product Series: RSF80
  • Family Series: Cynergy3 Components Sensors, RSF80 Series

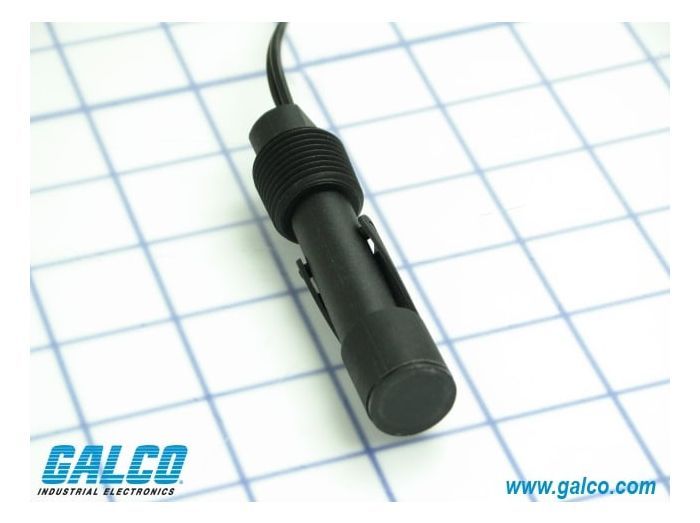

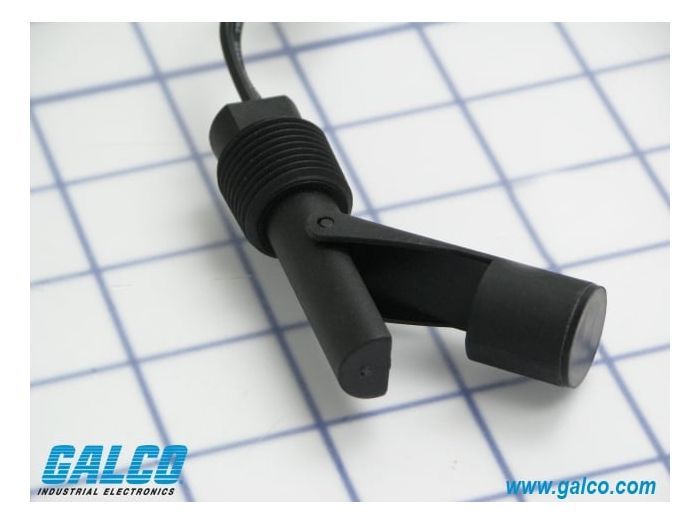

  • Description: Float Switch,SPNO,Horizontal,25VA, Nylon,1/2NPT
  • Float Type: Horizontal Float
  • Number of Floats: 1
  • Contacts: SPDT
  • Switching Current: 0.6 A
  • Switching Power (VA): 25 VA
  • AC Voltage: 240 VAC
  • Switching Voltage DC: 120 VDC
  • Mounting: External Side
  • Connection Type: Wire Leads
  • Composition: Nylon
  • Cable Length: 1 m
  • Thread Size: 1/2 in. NPT
  • Diameter: 18 mm
  • Length: 1 m
  • Operating Temperature: -4-167 °F
  • Approvals: UL, WRAS
  • Comments: Switch action may be reversed by rotating the device through 180 degrees.
  • Net Weight: 0.1 lbs
  • Gross Weight: 0.1 lbs
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение, учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?

Если вы не нашли продукцию бренда Cynergy3 Components на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.

Заказать товар Заказать товар
Cynergy3 Components RSF83Y100R
Sensors, RSF80 Series Item # RSF83Y100R Float Switch,SPNO,Horizontal,25VA, Horizontal Float 25 VA Switching Power 0.6 Amp Switching Current NO/NC Contacts External Mounting The RSF80 series from Cynergy3 is designed for external mounting achieved with a 1/2" NPT taper thread. This avoids the need for access to the inside of the chamber and is ideally suited to applications where space or fitting time are prime considerations. They are manufactured in a variety of materials to suit most commonly used liquids. The switch action may be reversed by rotating the device through 180°. Typical applications are diesel level for generators, hydraulic fluid level, and gearbox oil level.
