Dwyer Instruments 725BXXBC3ML-120A
Артикул:
725BXXBC3ML-120A
Изготовитель:
Dwyer Instruments
✅ Под заказ
ЗАКАЗАТЬ
ЗАКАЗАТЬ
Технические характеристики 725BXXBC3ML-120A
Раздел
Реле
Подраздел
Dwyer Instruments
Вес
-
Description: Power Relays DPST-No 24 Amp Rating (Ac) 24 VAC 50/60 Hz 5200 Ohm
-
Coil Voltage: 120 VAC
-
Contacts: 2NO
-
Mounting: DIN Rail
-
Termination: Quick Connect
-
Enclosure: Plastic
-
Status Indicator: Yes
-
Push-to-Test: Yes
-
Diode: No
-
Material: Silver Alloy
-
Nominal Coil Voltage: 120 VAC
-
Current Rating: 25 A
-
Bifurcated Contact: No
-
Mechanical Latch: No
-
Safety Guided: Yes
-
Approvals: CE, CSA, UL
-
Net Weight: 0 lbs
-
Gross Weight: 0.205 lbs
-
Manufacturer Part Number: 725BXXBC3ML-120A
-
Manufacturer: Dwyer Instruments
-
Product Series: 725
-
Family Series: Dwyer Instruments Relays, 725 Series
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о
стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение,
учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?
Если вы не нашли продукцию бренда Dwyer Instruments на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.
Заказать товар
Заказать товар

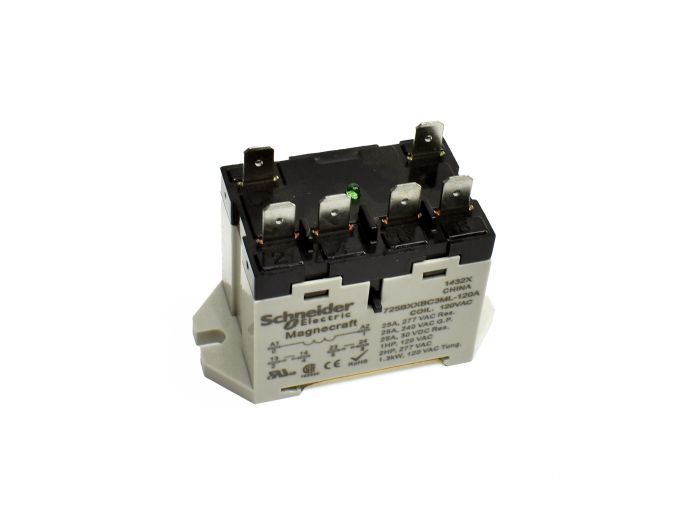

Dwyer Instruments 725BXXBC3ML-120A
Relays, 725 Series
Item #
725BXXBC3ML-120A
Power Relays DPST-No 24 Amp Rating
The Series 725 Power Relays are designed to switch high current loads in the most demanding of applications. By having a high dielectric strength from the coils to the contacts, the relay can withstand severe voltage surges and spikes as commonly seen in inductive loads. Flag and LED indicators show the relay status and if there is power to the coil. A push‑to‑test button allows for manual testing of the relay operation without providing an electrical trigger. Integral mounting ears allows the relay to be panel mounted or DIN rail mounted without the need for an external socket. For quicker wiring installation, the Series 725 is available with quick connect tabs or screw terminals.
SPST‑NO or DPST‑NO Switching Operation
CE, CSA, RoHS, cUR, and UL Approvals
25 or 30 Amps Rated Current Load
