Dwyer Instruments 781XAXRM4L-120A

Артикул: 781XAXRM4L-120A
Изготовитель: Dwyer Instruments
✅ В наличии
ЗАКАЗАТЬ ЗАКАЗАТЬ

Технические характеристики 781XAXRM4L-120A

Раздел
Реле
Подраздел
Dwyer Instruments
Вес
  • Description: Ice Cube Relays/SPDT 15 Amp Rating 120 VAC 50/60 Hz
  • Coil Voltage: 120 VAC
  • Contacts: SPDT
  • Mounting: Plug In
  • Termination: Socket
  • Enclosure: Plastic
  • Status Indicator: Yes
  • Push-to-Test: Yes
  • Material: Silver Alloy
  • Nominal Coil Voltage: 120 VAC
  • Current Rating: 15 A
  • Safety Guided: Yes
  • Approvals: CE, CSA, cULus, cURus
  • Net Weight: 0.055 lbs
  • Gross Weight: 0.055 lbs
  • Manufacturer Part Number: 781XAXRM4L-120A
  • Manufacturer: Dwyer Instruments
  • Product Series: 781
  • Family Series: Dwyer Instruments Relays, 781 Series
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение, учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?

Если вы не нашли продукцию бренда Dwyer Instruments на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.

Заказать товар Заказать товар

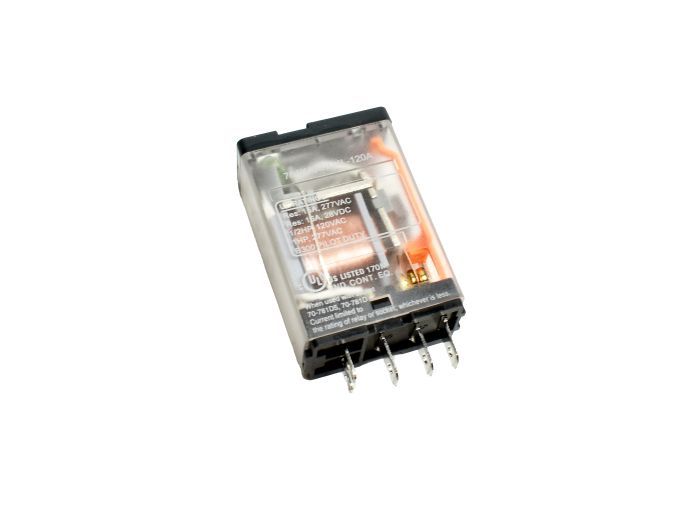

Dwyer Instruments 781XAXRM4L-120A
Relays, 781 Series Item # 781XAXRM4L-120A Ice Cube Relays/SPDT 15 Amp Rating Full‑featured relays that can be used to handle loads up to 15 amps for AC or DC circuits. It features a flag status indicator and a LED status lamp to let the user know when the relay is activated. In order to differentiate between AC and DC actuated models, the push‑to‑test button is color coded and a removable lock‑down lever holds the test button in place. Clear plastic housing to easily view the contacts Flag and LED status indicators for visual confirmation of relay state Socket mounted for quick installation/replacement APPLICATIONS Refrigeration compressor systems HVAC motor controls Water/wastewater pump control
