Edwards Signaling 96DV2C-N5
Артикул:
96DV2C-N5
Изготовитель:
EDWARDS SIGNALING
✅ В наличии
ЗАКАЗАТЬ
ЗАКАЗАТЬ
Технические характеристики 96DV2C-N5
Раздел
Сигнальные огни
Подраздел
Edwards Signaling
Вес
-
Manufacturer Part Number: 96DV2C-N5
-
Manufacturer: Edwards Signaling
-
Product Series: 96DV2
-
Family Series: Edwards Signaling Visual Signaling Devices, 96DV2 Series
-
Description: Sm Div2 Strobe 120V Ac Clear
-
Operation: Strobe
-
Voltage: 120 VAC
-
Nominal Voltage: 120 VAC
-
Color: Clear
-
Lamp Type: Strobe
-
Flash Rate/Minute: 65
-
Mounting: Conduit
-
Hazardous Location: Yes
-
Explosion Proof: No
-
Candlepower: 300,000
-
Current Rating: 0.03 A
-
NEMA Rating: NEMA 4X
-
Approvals: cUL, UL
-
Net Weight: 1.29 lbs
-
Gross Weight: 3 lbs
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о
стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение,
учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?
Если вы не нашли продукцию бренда EDWARDS SIGNALING на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.
Заказать товар
Заказать товар

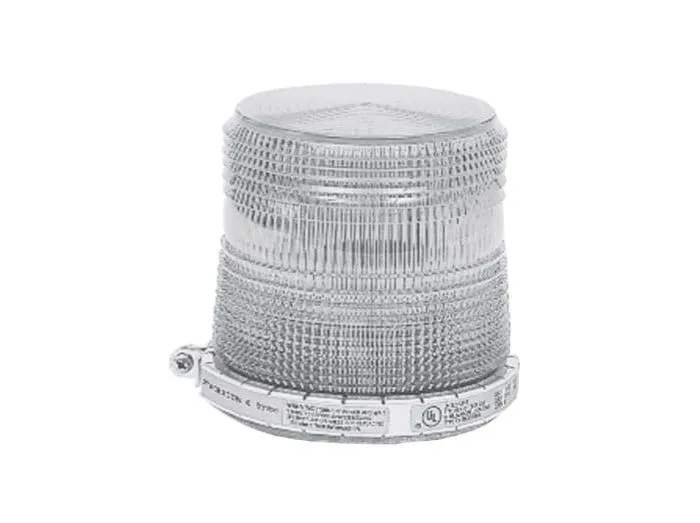

Edwards Signaling 96DV2C-N5
Visual Signaling Devices, 96DV2 Series
Item #
96DV2C-N5
Sm Div2 Strobe 120V Ac Clear
120 VAC
6 Lens Colors
3,000 Hour Lamp Life
Conduit Mount
UL; cUL Approvals
The Edwards 96DV2 Series Divison 2, NEMA Type 4X AdaptaBeacons are low profile units for use in light duty applications where short term intermittent signaling is required. They are ideal for signaling equipment malfunction, manufacturing processes, work breaks, stop start, and evacuation. They are UL Listed for outdoor and wet locations requiring Division 2 and NEMA 4X specifications.
A series of complementing fresnels cause the doe to "fill" with light each time the strobe flashes. This design feature increases the AdaptaBeacon "on‑time", thus improving viewer perception. Beam distance is also increased with external fresnel lenses.
Trigger and timing circuits are included as integral parts of the power supply. Replacement costs are reduced as it is necessary to replace only the strobe tube.
Designed for indoor or outdoor installation. May be direct of 1/2" (13mm) conduit mounted. The unit should be installed with the lens facing up.
The 96DV2 Series is ideally suited for installations where high ambient light levels make traditional rotating or flashing lights difficult to distinguish. The gasketed weatherproof design assures installation acceptability in most industrial and commerical locations.
