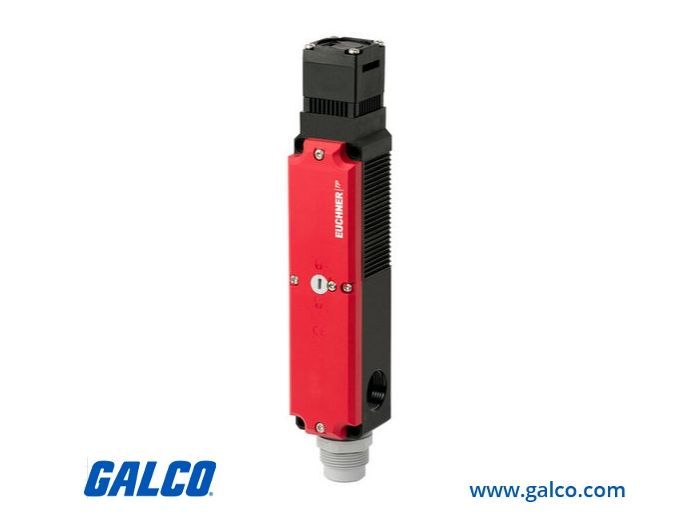

Euchner 088213

Артикул: 088213
Изготовитель: Euchner
✅ В наличии
ЗАКАЗАТЬ ЗАКАЗАТЬ

Технические характеристики 088213

Раздел
Механический
Подраздел
Euchner
Вес
  • Manufacturer Part Number: 088213
  • Manufacturer: Euchner
  • Product Series: TP
  • Family Series: Euchner Safety Switches, TP Series
  • Description: TP3-537K024SR6
  • Guard Locking Type: Current Unlocks (Closed Circuit)
  • Solenoid Contacts: 1NC
  • Switch Contacts: 1NO
  • Thermal Current Rating: 4 A
  • Voltage: 24 VAC, 24 VDC
  • Contact Load: 8 W
  • Holding Force: 1,300 N
  • Extraction Force: 20 N
  • Auxiliary Release: Yes
  • Connection Type: 7 Pin Plug Connector
  • Adjustable Actuator Head: Yes
  • Protection Rating: IP65
  • Net Weight: 1.1025 lbs
  • Gross Weight: 1.1025 lbs
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение, учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?

Если вы не нашли продукцию бренда Euchner на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.

Заказать товар Заказать товар
Euchner 088213
Safety Switches, TP Series Item # 088213 TP3-537K024SR6 Electrical or Mechanical Guard Locking Optional Escape Release from the Rear Contacts Monitor both Door Position and Locking State Adjustable Actuator Head for Multiple Approach Directions Protection Ratings IP65 or IP67 Due to its die‑cast aluminum housing and the high degree of protection, the TP Series safety switch can withstand even extreme ambient conditions. Like the switches TP and STP, the safety switch STA also has guard locking and guard lock monitoring. The TP Series has a narrow profile thermoplastic housing with many variations to meet a variety of different needs. Thanks to their slim design, series TP safety switches are ideal for universal mounting on profile rails. Same Drilling Pattern as GP and STP Series Eleven Different Switching Contact Configurations Auxiliary Unlocking Mechanism on Front
