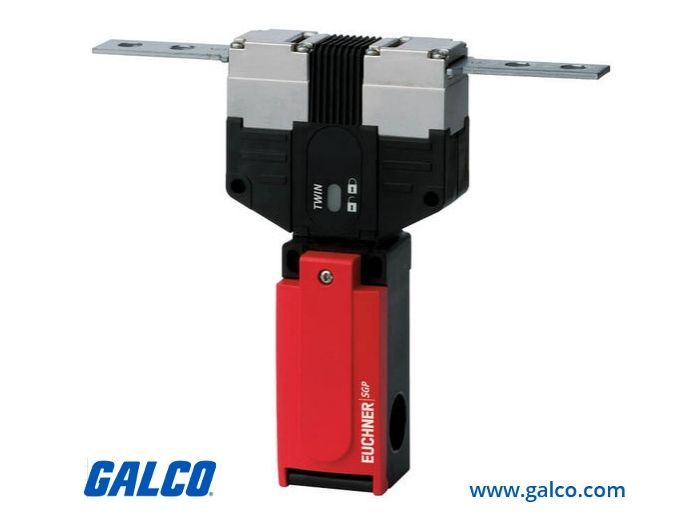

Euchner 100809

Артикул: 100809
Изготовитель: Euchner
✅ В наличии
ЗАКАЗАТЬ ЗАКАЗАТЬ

Технические характеристики 100809

Раздел
Механический
Подраздел
Euchner
Вес
  • Manufacturer Part Number: 100809
  • Manufacturer: Euchner
  • Product Series: SGPTWIN
  • Family Series: Euchner Safety Switches, SGPTWIN Series
  • Description: SGP-TW-1E-2131AC-M
  • Solenoid Interlocking: No
  • Guard Locking Type: None
  • Switch Contacts: 1NO/3NC
  • Thermal Current Rating: 4 A
  • Extraction Force: 25 N
  • Auxiliary Release: No
  • Connection Type: Screw Terminals
  • Adjustable Actuator Head: Yes
  • Protection Rating: IP67
  • Net Weight: 0.7056 lbs
  • Gross Weight: 0.7056 lbs
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение, учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?

Если вы не нашли продукцию бренда Euchner на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.

Заказать товар Заказать товар
Euchner 100809
Safety Switches, SGPTWIN Series Item # 100809 SGP-TW-1E-2131AC-M Non‑Locking Mechanical Safety Switch Dual Actuator Heads Allow Simultaneous Monitoring of Two Safety Guards Adjustable Actuator Heads Flexible connection options using three cable entries Protection Rating IP67 The SGP Series safety switch is the counterpart to Series STP. The entire STP and SGP product family has the same metal actuating head and the same actuator. As a result, either the safety switch STP (with guard locking) or the SGP (without guard locking) can be used in a system, depending on the requirements. EUCHNER supplies the SGP product range with switching elements in various contact combinations (positively driven NC contacts / NO contacts). Dual‑channel wiring to achieve the maximum possible safety level is possible with all variants. Because they can switch currents as low as 1 milliamp, STP series safety switches are suitable for use on safe controllers. Same Drilling Pattern as STP Series, Same Actuators Metal Actuating Head UL and cUL Listed
