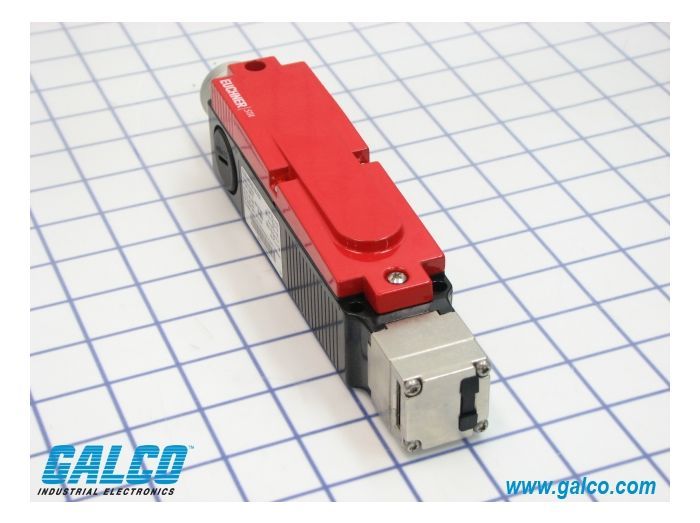

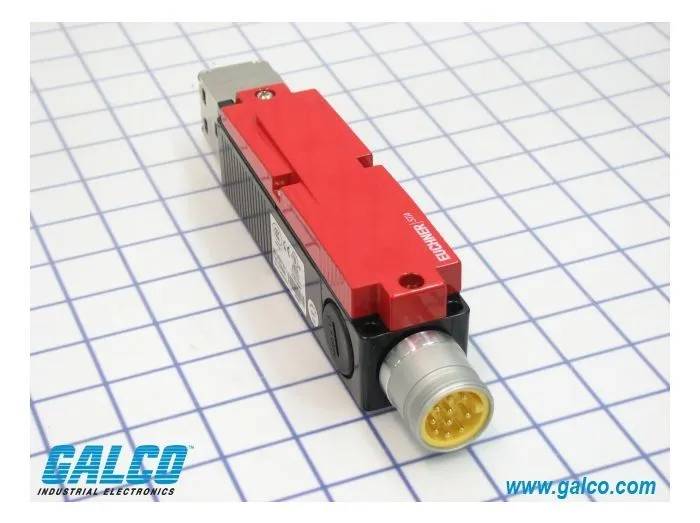

Euchner 99717

Артикул: 99717
Изготовитель: Euchner
✅ В наличии
ЗАКАЗАТЬ ЗАКАЗАТЬ

Технические характеристики 99717

Раздел
Механический
Подраздел
Euchner
Вес
  • Manufacturer Part Number: 99717
  • Manufacturer: Euchner
  • Product Series: STA
  • Family Series: Euchner Safety Switches, STA Series
  • Description: SAFETY SWITCH, STA3A-4131A024-10C- DCX
  • Guard Locking Type: Current Unlocks (Closed Circuit)
  • Solenoid Contacts: 1NO/2NC
  • Switch Contacts: 1NO
  • Thermal Current Rating: 4 A
  • Voltage: 24 VAC, 24 VDC
  • Contact Load: 8 W
  • Holding Force: 2,000 N
  • Extraction Force: 30 N
  • Auxiliary Release: No
  • Connection Type: Screw Terminals
  • Adjustable Actuator Head: Yes
  • Protection Rating: IP65
  • Net Weight: 1.1025 lbs
  • Gross Weight: 1.53 lbs
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение, учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?

Если вы не нашли продукцию бренда Euchner на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.

Заказать товар Заказать товар
Euchner 99717
Safety Switches, STA Series Item # 099717 SAFETY SWITCH, STA3A-4131A024-10C- Electrical or Mechanical Guard Locking Holding Force up to 2500 Newtons Same Drilling Pattern as TP and STP Series Protection Rating IP65 or IP67 Adjustable Actuator Head for Multiple Approach Directions Due to its die‑cast aluminum housing and high degrees of protection, the STA Series safety switch can withstand extreme ambient conditions. Like the switches TP and STP, the safety switch STA also has guard locking and guard lock monitoring. These switches have positive opening contacts (in accordance to NFPA 79) and redundancy to guarantee that they fail to a safe state. Because they can switch currents as low as 1 milliamp, STA series safety switches are suitable for use on safe controllers.
