Технические характеристики 6KGP43010X9RBCA1
Раздел
Переменный ток
Подраздел
GE
Вес
-
Phase: 3
-
HP (Constant Torque Rating): 10 hp
-
HP (Variable Torque Rating): 10 hp
-
Amps (Constant Torque Rating): 14.5 A
-
Amps (Variable Torque Rating): 14.5 A
-
Brake: AC Braking, DC Injection, Dynamic Braking
-
Closed Loop: Optional
-
AC Line Regenerative: No
-
Operator Controls: Keypad Included
-
Motor Control-Max Level: Closed Loop Flux Vector
-
Mounting: Panel
-
Nominal Input Voltage: 380 VAC, 415 VAC, 480 VAC
-
AC Voltage: 380-480 VAC
-
Frequency: 1,000 Hz
-
Frame Size: 13
-
Enclosure: Open Chassis
-
Protection Rating: IP20
-
Dynamic Braking: Included
-
Height: 10.6 "
-
Width: 5.1 "
-
Depth: 8.1 "
-
Comments: Automatic motor tuning, process PID controller, built-in Modbus RTU, graphical keypad included
-
Net Weight: 14.5 lbs
-
Gross Weight: 14.5 lbs
-
Description: Drive, AC, 10HP, 480V, 14.5A, CT, OP 480Vin 3PH 10HP 14.5A VT W/DB Trans RFI Filter & Coated Boards AF-650GP
-
Manufacturer Part Number: 6KGP43010X9RBCA1
-
Manufacturer: GE
-
Product Series: AF-650GP
-
Family Series: GE Drives, AF-650GP Series
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о
стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение,
учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?
Если вы не нашли продукцию бренда GE на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.
Заказать товар
Заказать товар
GE 6KGP43010X9RBCA1
Drives, AF-650GP Series
Item #
6KGP43010X9RBCA1
Drive, AC, 10HP, 480V, 14.5A, CT, OP

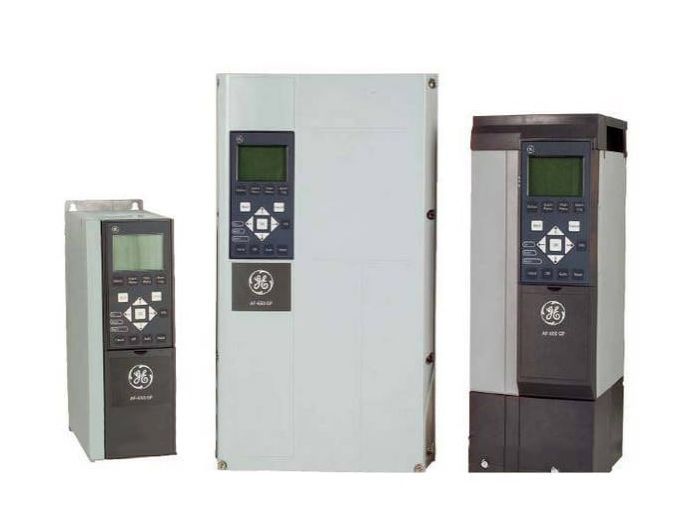

The AF‑650GP General Purpose Drive is a powerful, flexible, and easy to use drive with many standard features. It is ideally suited for both Heavy Duty and Light Duty applications. Available ratings include: 208/230V from 1/2 to 50HP, 460V from 1/2 to 1200HP, 575V from 1/2 to 100HP and 575/690V from 15 to 1350HP.
The drive is available in its standard configuration that includes an IP20 or IP00 Chassis, LCD Keypad that can be remote mounted, built‑in DC Link Reactors, built‑in Modbus RTU communications network, and RFI A2 filter. Standard features like Auto Tuning, process PID controller, energy savings mode and Logic Controller make the AF‑650GP drive ideal for all your conveyor, extruder, machine tool or light duty variable torque applications. Its Quick Menu, Info Key (online manual), and full description keypad make it a time saver during start‑up and commissioning.
Optional accessories include network communications modules for DeviceNet, Profibus DP, EtherNet IP, and soon to be available Modbus TCP/IP and Profinet RT. Drives are also available in IP54/55/NEMA 12, and IP66/NEMA 4X drive types. Optional IP21/NEMA 1 kits are available for all IP20 (100HP and below) Chassis units. Additionally, add on I/O modules, brake chopper, dynamic brake resistors, and conformal coated boards allow the drive to meet all your application needs.
