Greystone Energy Systems 601T-102

Артикул: 601T-102
Изготовитель: Greystone Energy Systems
✅ В наличии
ЗАКАЗАТЬ ЗАКАЗАТЬ

Технические характеристики 601T-102

Раздел
Трансформаторы тока
Подраздел
Greystone Energy Systems
Вес
  • Core Type: Split Core
  • Aperture Size: 4.5 x 4.5 "
  • Current Ratio: 1,000:5
  • Frequency: 50-400 Hz
  • Insulation Level (V): 600 V
  • Basic Impulse Level (kV): 10 kV
  • Mounting: Mounting Holes
  • Termination: Brass Stud
  • Approvals: CSA, UR
  • Net Weight: 1.5 lbs
  • Gross Weight: 1.5 lbs
  • Description: Split-core Current Transformer, 1000:5 Amp
  • Manufacturer Part Number: 601T-102
  • Manufacturer: Greystone Energy Systems
  • Product Series: 601T
  • Family Series: Greystone Energy Systems Current Transformers, 601T Series
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение, учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?

Если вы не нашли продукцию бренда Greystone Energy Systems на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.

Заказать товар Заказать товар

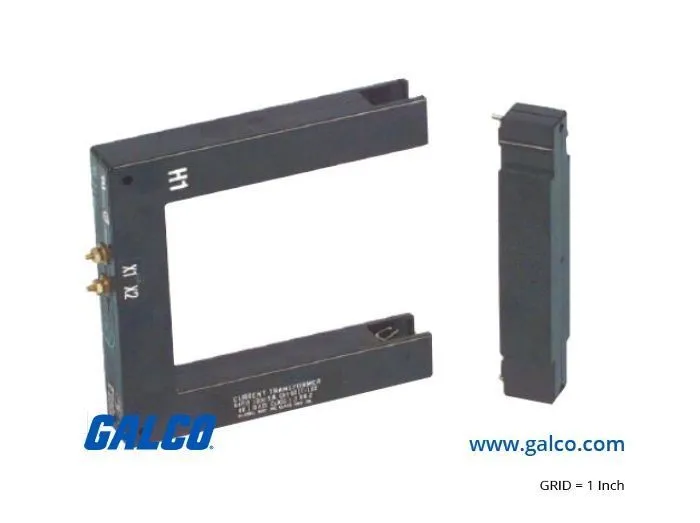

Greystone Energy Systems 601T-102
Current Transformers, 601T Series Item # 601T-102 Split-core Current Transformer, The Model 601T split‑core current transformers provide a low amperage current output proportional to line current for use in energy management control and metering applications, and are ideal for use as inputs to power monitors such as the WHT250 and current transducers such as the CVT100. These transformers are designed to be assembled around an existing insulated conductor without the need for dismantling the primary bus or cables. The portion of the transformers marked "This End Removable" can be disassembled and then reassembled around the conductors that require current monitoring.
