Hammond Manufacturing DTS3245A115LG

Артикул: DTS3245A115LG
Изготовитель: HAMMOND MANUFACTURING
✅ Под заказ
ЗАКАЗАТЬ ЗАКАЗАТЬ

Технические характеристики DTS3245A115LG

Раздел
Кондиционеры
Подраздел
Hammond Manufacturing
Вес
  • Manufacturer Part Number: DTS3245A115LG
  • Manufacturer: Hammond Manufacturing
  • Product Series: DTS3245
  • Family Series: Hammond Manufacturing Air Conditioners, DTS3245 Series
  • Description: Air Conditioner
  • Capacity: 12,000 BTUs
  • Ambient Temperature: 59-131 °F
  • Nominal Voltage: 120 VAC
  • Current Rating: 13 A
  • Refrigerant Type: R134A
  • NEMA Rating: NEMA 12
  • Approvals: cUL, CE, UL
  • Height: 47.61 "
  • Width: 23.4 "
  • Depth: 10.63 "
  • Net Weight: 150 lbs
  • Gross Weight: 150 lbs
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение, учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?

Если вы не нашли продукцию бренда HAMMOND MANUFACTURING на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.

Заказать товар Заказать товар

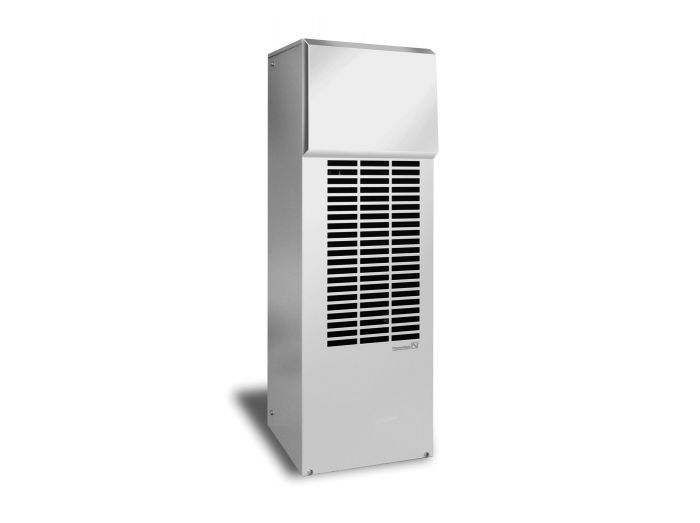

Hammond Manufacturing DTS3245A115LG
Air Conditioners, DTS3245 Series Item # DTS3245A115LG Air Conditioner Designed for Side Mounting on Any Enclosure Surface where High Capacity System Cooling is Required Closed Loop Cooling Ensures Clean Enclosure Air is Recirculated without ever Mixing with Contaminated Ambient Air Optimum Air Circulation with Maximum Clearance Distance between Warm Inlet and Cold Outlet for Reduced Hot Spot Locations Condensor with 3 mm Fin Spacing, Highly Effective Protection against Strongly Contaminated and Aggressive Ambient Air Thermostat Control Accessible from Inside Enclosure Hot Gas Bypass Valve Prevents Evaporator Freeze Up while Minimizing Heavy Inrush Currents on Large BTU/H Units Expansion Valve Increases Efficiency with Improved Evaporator Heat Transfer and Less Frequent Compressor Operation Built in Condensate Evaporator Continuous Air Circulation from High Capacity Fans Self‑Diagnostics on Startup Fault Indication via LED Light Provision for Door Contact Allowing Power Down when Enclosure Door is Opened Gasket, Mounting Kit and Template for Enclosure Cutout and Drilling are Included Condensate Drain Hose and Clamp Provided Q Mount allows Unit to Hang in Place for Easy Installation
