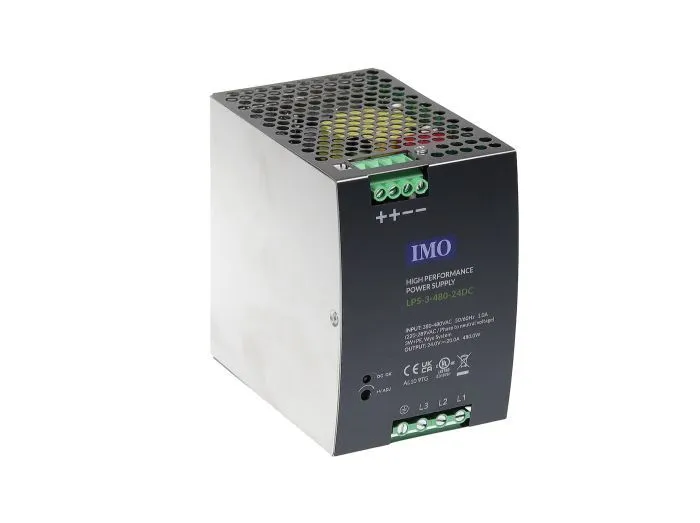

IMO LPS-3-480-24DC

Артикул: LPS-3-480-24DC
Изготовитель: IMO
✅ В наличии
ЗАКАЗАТЬ ЗАКАЗАТЬ

Технические характеристики LPS-3-480-24DC

Раздел
Переключение
Подраздел
IMO
Вес
  • Manufacturer Part Number: LPS-3-480-24DC
  • Manufacturer: IMO
  • Product Series: LPS
  • Family Series: IMO Power Supplies, LPS Series
  • Description: Power Supply 340-550V AC Input 24V DC Output 480 Watts 20A
  • Power: 480 W
  • Nominal Input Voltage: 480 VAC
  • AC Voltage: 340-550 VAC
  • Phase: 3
  • Nominal Output Voltage: 24 VDC
  • Output Current: 20 A
  • Mounting: DIN Rail
  • Enclosed: Yes
  • Encapsulated: No
  • Overvoltage Protection: Yes
  • Overload Protection: Yes
  • Short Circuit Protection: Yes
  • Protection Rating: IP20
  • Approvals: CE, cULus, cURus, TUV
  • Net Weight: 3.265 lbs
  • Gross Weight: 3.41 lbs
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение, учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?

Если вы не нашли продукцию бренда IMO на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.

Заказать товар Заказать товар
IMO LPS-3-480-24DC
Power Supplies, LPS Series Item # LPS-3-480-24DC Power Supply 340-550V AC Input 24V DC Ou The LPS series of single and three‑phase UL‑approved industrial power supply offers the largest range encompassing both plastic and metal‑bodied PSUs, making them ideal for virtually every industrial application. Featuring DC OK Relay on selected models (see Quick Feature Guide table overleaf), the LPS series offers the widest range of voltage outputs including 5V, 12V, 24V, and 48V. All models up to 100W are supplied in slimline fanless plastic bodies, whereas the models from 150W upwards are supplied in fanless metal bodies. Additionally, the metal‑bodied LPS PSUs offer Power Factor Correction for improved efficiency as well as a reduction in power demand, which not only reduces running costs but allows for more load. Three‑phase models can also accept bi‑phase power input. Single Phase10W‑480W AC‑DC DIN Rail Power Supplies Key Features 5, 12, 24 & 48 VDC Universal Input: 85‑264VAC / 120‑375VDC High Efficiency Short Circuit Protection Internal Input Filter IP20 Protection Rated Three Phase 240W‑480W AC‑DC DIN Rail Power Supplies Key Features 24 VDC 3 Phase Input: 340‑550VAC / 480‑780VDC Accepts Bi‑Phase Input High Efficiency Short Circuit Protection Internal Input Filter IP20 Protection Rated
