Johnson Controls P499RCSS101C

Артикул: P499RCSS101C

Изготовитель: JOHNSON CONTROLS

Новый продукт Запросить стоимость и остатки по запросу Новый продукт OEM Запросить стоимость и остатки по запросу Не использованный в упаковке Raxwell Запросить стоимость и остатки по запросу Восстановленный товар Запросить стоимость и остатки по запросу

✅ Под заказ

ЗАКАЗАТЬ ЗАКАЗАТЬ

Технические характеристики P499RCSS101C

Раздел

Преобразователи давления

Подраздел

Johnson Controls

Вес

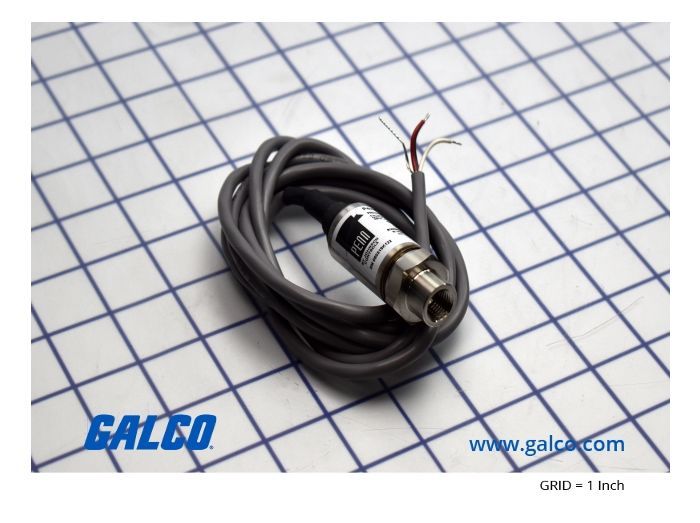

Description: Electronic Press Trnsdcr; 0-100 Psis 1/4In Sae 45 Deg Flare Intnl Thread (7/16-20 Unf)W/Depressor
Type: General Industrial (Unamplified)
Pressure Range (Gauge): 0-100 psi
Max Pressure (Gauge): 100 psi
Input: 5 VDC
Output: 0.5-4.5 VDC

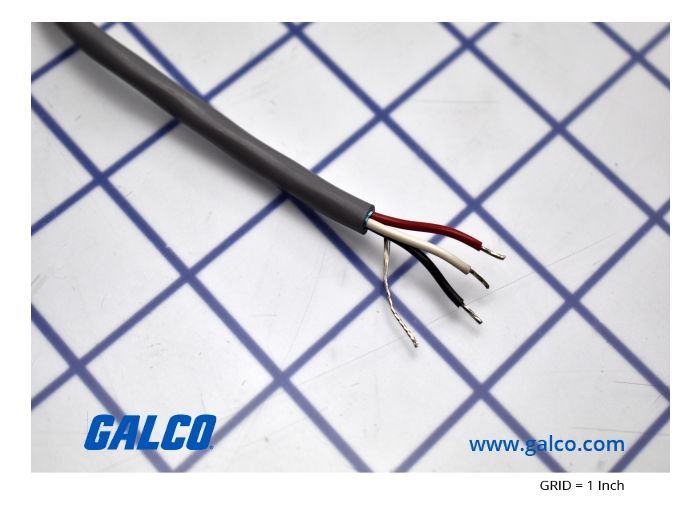

Electrical Connection: Cable - Jacketed, Shielded
Length: 6 '
Connection: 7/16-20 SAE Male
Operating Temperature: '-40-185 °F
Protection Rating: IP67
Approvals: CE, UL
Net Weight: 0.33 lbs
Gross Weight: 0.375 lbs
Manufacturer Part Number: P499RCSS101C
Manufacturer: Johnson Controls
Product Series: P499
Family Series: Johnson Controls Transducers, P499 Series

В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о стоимости наших товаров только по запросу.

Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение, учитывающее все ваши потребности и спецификации заказа.

Не нашли продукцию?

Если вы не нашли продукцию бренда JOHNSON CONTROLS на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.

Заказать товар Заказать товар

Johnson Controls P499RCSS101C

Transducers, P499 Series Item # P499RCSS101C Electronic Press Trnsdcr; 0-100 Single‑Piece Machined 17‑4PH Stainless Steel Pressure Port Provides a Durable Assembly That Eliminates Refrigerant Loss Due to O‑Ring or Weld Failures; Resists Damage Due to Physical Shock, Vibration, and Pressure Pulsations; Enables Use with Non‑Corrosive or Corrosive Pressure Media That Is Compatible with 17‑4PH Stainless Steel. Environmentally Protected Electronics Withstand the Effects of Adverse Conditions Associated with Typical HVAC/R Applications, Including Freeze/Thaw Applications on Suction Lines. Many Available Pressure Ranges Provide a Single Line of Transducers for All Refrigeration and Air Conditioning Application Needs. Slender Body Design Facilitates Use of Deep‑Socket Wrenches for Ease of Installation; Requires Zero Turning Radius. Reliable, Repeatable Performance and Long Operating Life Minimizes Service and Replacement Costs. 1% Total Error Band Provides High‑Accuracy Performance. CE and UL Agency Listings Allow for Global Applications. The P499 Series Electronic Pressure Transducers are compact, economical, and rugged direct‑mount pressure transducers designed for use in commercial refrigeration and air conditioning applications. These transducers produce an analog signal based on the sensed pressure. The P499 Series transducers feature environmentally protected electronics with stainless steel construction. The digitally compensated P499 transducers are highly accurate over a broad temperature range, resisting the effects of wide ambient temperature swings, high humidity, condensation, and icing. The pressure port is machined from a solid piece of 17‑4PH stainless steel. No O‑rings, organic materials, or welds are exposed to the pressure media, allowing for a leak‑proof, all‑metal, sealed pressure system. The P499 Series transducers operate with any corrosive or non‑corrosive pressure medium that is compatible with 17‑4PH stainless steel, including water, condensate, carbon dioxide, glycol, most refrigerants (including ammonia), and many other compatible fluids and gases. The P499 Series provides transducers in a variety of pressure ranges, covering most common refrigeration and air conditioning applications.
