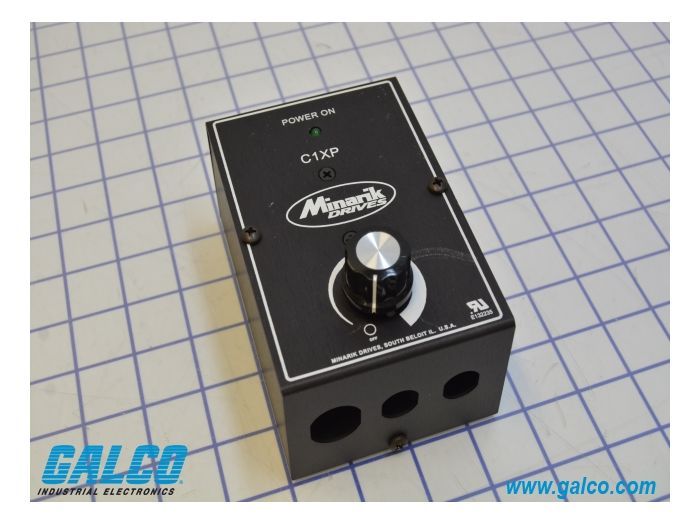

Minarik Drives C1XP01-115AC-A
Артикул:
C1XP01-115AC-A
Изготовитель:
Minarik Drives
✅ Под заказ
ЗАКАЗАТЬ
ЗАКАЗАТЬ
Технические характеристики C1XP01-115AC-A
Раздел
Постоянный ток
Подраздел
Minarik Drives
Вес
-
AC Voltage: 104-127 VAC
-
Output Armature Voltage (DC): 0-130 VDC
-
Phase: 1
-
Operating Temperature: 50-104 °F
-
Max Armature Current (DC): 1 A
-
Nominal Input Voltage: 120 VAC
-
Operator Controls: Built In
-
NEMA Rating: NEMA 1
-
Approvals: CE, UL
-
Comments: Potentiometer Included.
-
Nominal Armature VDC: 36 VDC, 12 VDC, 24 VDC, 48 VDC, 90 VDC, 180 VDC
-
Net Weight: 1 lb
-
Gross Weight: 1 lb
-
Description: Drive, DC, 1A Max, 115VAC Input, N1, 0-130VDC Output, 1/100-1/10HP Max, Pot Incl.
-
Manufacturer Part Number: C1XP01-115AC-A
-
Manufacturer: Minarik Drives
-
Product Series: XP
-
Family Series: Minarik Drives Drives, XP Series
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о
стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение,
учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?
Если вы не нашли продукцию бренда Minarik Drives на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.
Заказать товар
Заказать товар
Minarik Drives C1XP01-115AC-A
Drives, XP Series
Item #
C1XP01-115AC-A
Drive, DC, 1A Max, 115VAC Input, N1,
MM Footprint: Chassis Drives have an Industry Standard Footprint
Low Cost: Designed for OEM Applications
Speed Range and Regulation: 1% Regulation over 80:1 Speed Range
User Adjustable Calibration Pots: IR Compensation, Min Speed (PCMXP and C1XP Only), Max Speed, Current Limit, Acceleration/Deceleration (XP Drives Only), and Signal Adjust (PCMXP Only)
Spade Terminals: Easy to Use, Lower Cost, and Able to Fit in a Smaller Package
Specifically designed for the original equipment manufacturer (OEM), the XP Series of DC motor speed drives provide high performance at a low cost. These drives are well suited for MMXL or XL drive applications who do not need all of their features. These PWM drives result in a smooth, quiet, cool and low maintenance motor operation.
The C1XP Series is enclosed in a compact NEMA 1 enclosure. The PCMXP Series includes isolation so the drive can follow a remote 0‑10VDC from a PLC.
Choose the XP Series for the best low cost PWM drive on the market.
Accepts AC or DC Input: Can Accept 100‑160VDC Input Voltage or 70‑130VAC
Options: "‑Q" Option on the XP02‑115AC adds a Terminal Block, On‑Board Fusing, Inhibit, and Replaces the Accel/Decel Trimpot with a Min Speed Trimpot
Accessories: Heatsink 223‑0159, DLC600 Digital Closed Loop Controller
