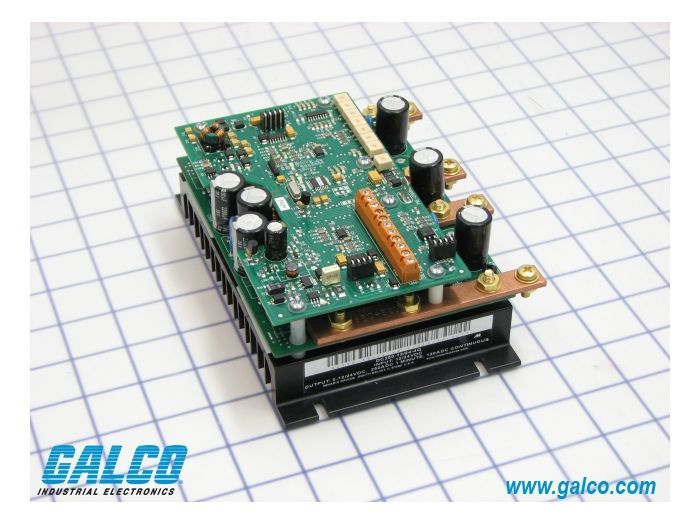

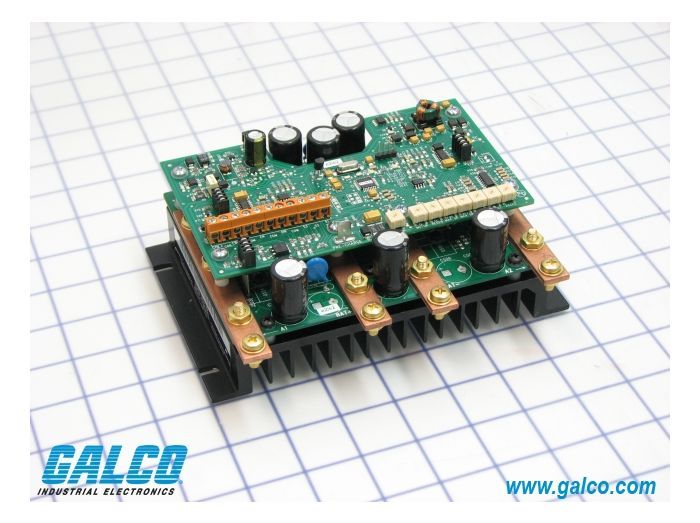

Minarik Drives DC250-12/24-4Q
Артикул:
DC250-12/24-4Q
Изготовитель:
Minarik Drives
✅ Под заказ
ЗАКАЗАТЬ
ЗАКАЗАТЬ
Технические характеристики DC250-12/24-4Q
Раздел
Постоянный ток
Подраздел
Minarik Drives
Вес
-
Output Armature Voltage (DC): 12 VDC, 24 VDC
-
Operating Temperature: 32-104 °F
-
Max Armature Current (DC): 250 A
-
Operator Controls: Built In
-
Comments: Potentiometer Included.
-
Nominal Armature VDC: 12 VDC, 24 VDC
-
Net Weight: 2.5 lbs
-
Gross Weight: 2.5 lbs
-
Description: Drive, DC, 12/24V, 100[240]A, 4Q PWMu Chassis 12/24V 100(240)A, Pot Incl.
-
Manufacturer Part Number: DC250-12/24-4Q
-
Manufacturer: Minarik Drives
-
Product Series: DC-4Q
-
Family Series: Minarik Drives Drives, DC-4Q Series
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о
стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение,
учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?
Если вы не нашли продукцию бренда Minarik Drives на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.
Заказать товар
Заказать товар
Minarik Drives DC250-12/24-4Q
Drives, DC-4Q Series
Item #
DC250-12/24-4Q
Drive, DC, 12/24V, 100[240]A, 4Q
Four Quadrant Control: Simple Reversing and Braking via a Switch Closure to the Drive
High Continuous Current: Up to 120 Amps Continuous, Robust Bus Bars used to Handle the Current
Max One Min. Peak Current: 240 Amps
Output 100% of DC Input: Compared to 90% Output of Similar Units on the Market
Short Circuit Protection: Unit Protects Itself against a Shorted Motor
The DC‑4Q series of drives are DC in/DC out PWM chassis drives capable of four quadrant reversing and braking. This series of drives is ideal for portable battery powered equipment. The DC‑4Q has the ability to maintain variable speed even as battery decreases and has a sleep mode for extended battery life while not in use. The four quadrant capability allows simple connections for fast reversing and/or braking without the need for bulky contactors or braking resistors. The 1.01 form factor produces clean DC output for efficient and quiet motor operation. Like all Minarik Drives products, these units are built in the USA.
The DC‑4Q series of drives have adjustments for IR Compensation, Motoring Current Limit, Regenerative Current Limit, Forward Max Speed, Reverse Max Speed, Min Speed, Deceleration and Acceleration Time. These drives are microprocessor based meaning these ranges can be reprogrammed to meet any custom needs. The DC‑4Q series also has Power and Fault LEDs, including current limit, under voltage, overheat and short circuit.
The DC‑4Q is available in two models, one for 12‑24V systems, the other is designed for 36‑48V systems. For simplicity and safety, no jumpers or switches are required for selecting voltages.
Sleep Mode: Extended Battery Life
On Board Calibration: Calibrate Using On Board Non‑Interactive Trimmer Pots, No Programming or Additional Accessories are Needed
Inhibit Circuit: Convenient for Remote Starting and Stopping
1.01 Form Factor: Clean DC Output for Efficient and Quiet Motor Operation at a 16kHz PWM Frequency
Fan Accessory: Optional Field Installable Fan Kit Increases Continuous Current Rating at 160 Amps
Precharge Circuit: Optional Contactor can be Used to Provide Soft Starts and Protection against Runaway
LED Outputs: Power, Current Limit, Under Voltage, Over Voltage, Overheat and Short Circuit
Temperature Sensor: Current Limit Automatically Reduced if Controller Heats Up
