Minarik Drives RG61U-T-PCM

Артикул: RG61U-T-PCM

Изготовитель: Minarik Drives

Новый продукт Запросить стоимость и остатки 1 892 € цена может отличаться Новый продукт OEM Запросить стоимость и остатки по запросу Не использованный в упаковке Raxwell Запросить стоимость и остатки по запросу Восстановленный товар Запросить стоимость и остатки по запросу

✅ В наличии

ЗАКАЗАТЬ ЗАКАЗАТЬ

Технические характеристики RG61U-T-PCM

Раздел

Постоянный ток

Подраздел

Minarik Drives

Вес

Manufacturer Part Number: RG61U-T-PCM
Manufacturer: Minarik Drives
Product Series: RG60U
Family Series: Minarik Drives Drives, RG60U Series
Description: 4Q SCR Chassis Dual 1.5A w/ Iso, Torque, Pot Incl.
AC Voltage: 104-127 VAC, 207-253 VAC
Output Armature Voltage (DC): 0-90 VDC, 0-180 VDC
Phase: 1
Operating Temperature: 50-131 °F
Max Armature Current (DC): 1.5 A
Nominal Input Voltage: 120 VAC, 240 VAC
Regen: Yes
Feedback: Armature, Tachometer
Operator Controls: Built In
Approvals: cUL, UL
Comments: Potentiometer Included.
Nominal Armature VDC: 36 VDC, 12 VDC, 24 VDC, 48 VDC, 90 VDC, 180 VDC
Net Weight: 1.75 lbs
Gross Weight: 1.75 lbs

В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о стоимости наших товаров только по запросу.

Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение, учитывающее все ваши потребности и спецификации заказа.

Не нашли продукцию?

Если вы не нашли продукцию бренда Minarik Drives на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.

Заказать товар Заказать товар

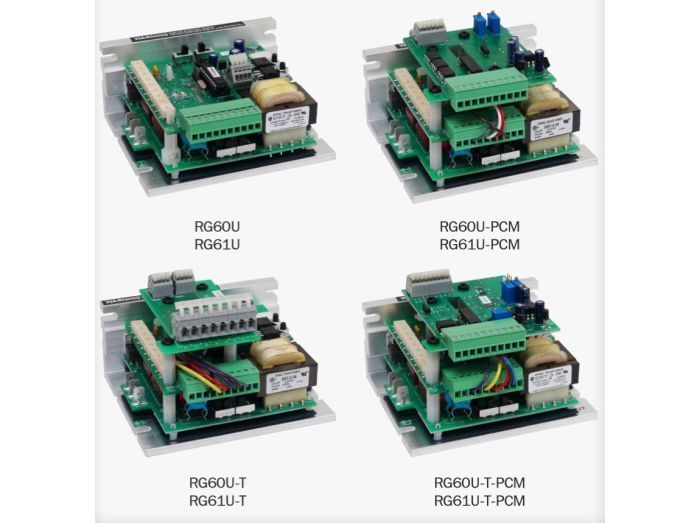

Minarik Drives RG61U-T-PCM

Drives, RG60U Series Item # RG61U-T-PCM 4Q SCR Chassis Dual 1.5A w/ Iso, MM Footprint: Compact Industry Standard Footprint 4Q Reversing: Regenerative/4 Quadrant Drives have the Ability to Perform Quick, Contactorless Reversing On‑the‑Fly Speed Range and Regulation: 2% Regulation over 50:1 Speed Range. 0.5% Regulation over 60:1 Speed Range with the Addition of a Tachometer for Feedback User Adjustable Calibration Pots: IR Compensation, Min Speed, Max Speed, Forward Acceleration, Reverse Acceleration, Forward Torque, Reverse Torque, Tachometer and Deadband Diagnostic LEDs: Power, Forward Current Limit, Reverse Current Limit Minarik's RG60 Series is a compact, full‑featured regen drive. Standard features include a choice of tachometer or armature feedback, nine trimmer pots including forward and reverse independent adjustments for acceleration and torque, cage clamp and plug‑in terminal blocks for secure and easy connections and current limit LEDs. A unique feature on the RG60U is the ability to choose the enable and inhibit terminals to operate either 'normally open' or 'normally closed'. The RG60U has two additional options available. The RG60U‑PCM comes with isolation so that any +/‑ 10 VDC or 4‑20 mA reference signal can be used. The RG60U‑T comes with the ability to be used in torque or speed control using a remote pot. Torque control is useful in many web tensioning and winder applications. Robust SCR technology with regenerative capability makes the RG60U especially ideal for high duty cycle and reversing applications. Stopping Modes: Inhibit (N/O or N/C) to Immediately Break to a Stop. RB1 to RB2 (N/O) to Decelerate to a Stop. Enable (N/O or N/C) to Coast to a Stop Configurable Enable and Inhibit: Can be Configured to be either Normally Open or Normally Closed ‑PCM Option: Isolation Daughter Card. Accepts 4‑20mA Signals and Non‑Isolated Speed Reference Voltages between ‑10V and +10V ‑T Option: Speed/Torque Adder Card. Torque or Speed Control for Both Forward and Reverse Directions using a Remote Pot. (Not Compatible with Analog Signal) Accessories: Heatsink 223‑0159, DLC600 Digital Closed Loop Controller, and 200‑0386A Limit Switch Logic Board
