Технические характеристики G4X5WH6
Раздел
Кабель-канал
Подраздел
Panduit
Вес
-

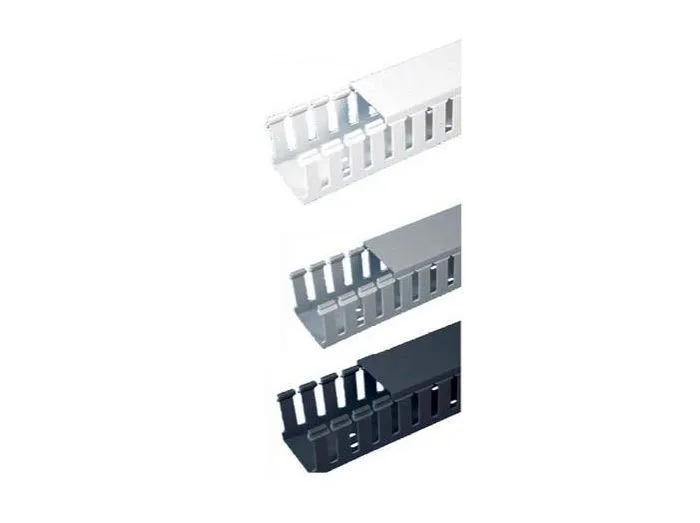

Description: The G4X5WH6 Panduct Lead-Free PVC Wide Slot Wiring Duct feature a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use temperature
-
Style: Rigid PVC, Slotted
-
Height: 5.1 "
-
Width: 4.25 "
-
Slot Width: 0.38 "
-
Color: White
-
Cover Included: No
-
Nominal Height: 5 "
-
Nominal Width: 4.25 "
-
Approvals: CE, CSA, UL
-
Net Weight: 0 lbs
-
Gross Weight: 5.16 lbs
-
Manufacturer Part Number: G4X5WH6
-
Manufacturer: Panduit
-
Product Series: Panduct PanelMax
-
Family Series: Panduit Wire Duct, Panduct PanelMax Series
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о
стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение,
учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?
Если вы не нашли продукцию бренда PANDUIT на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.
Заказать товар
Заказать товар
Panduit G4X5WH6
Wire Duct, Panduct PanelMax Series
Item #
G4X5WH6
Panduct G4X5WH6 Base Wiring Duct
Space saving design positions DIN rail and components off the panel directly above an integrated wire management channel for up to a 30% smaller footprint for duct and components; increased design flexibility and component access for easier installation and maintenance
DIN rail and DIN component compatible with standard 35mm or 15mm rails and many DIN rail mount components for design flexibility
Integrated DIN rail fastening slot allows the DIN rail to mount directly to product with plastic thread cutting screws for up to 40% faster duct and rail installation and reduced labor costs
Hinged cover remains attached during maintenance and upgrades preventing lost covers, ensuring panel integrity, safety and aesthetics; L‑shaped cover acts as ledge to aid wire installation for ease of use
Slotted platform (horizontal) manage the wire from channel mounted components, outer sidewall slots (vertical) manage wire from adjacent panel mounted components; unique finger and slot progression for optimal wire management and aesthetics
Channel pass through slots allows wires to transition internally between channels to ease wire connections to either side of components mounted on the same rail minimizing wire length and reducing material cost
Optional wire retainer accessory retains cabling with cover opened or removed easing wire installation and future wire additions
Durable and continuous metallic foil covers and shields outer duct surfaces providing EMI/RFI noise reduction between sensitive and noisy wiring for up to 20dB reduction in noise, or 90% NVR (equivalent to 6 inches of air spacing)
Slotted sidewalls with horizontal bridge connectors provide wire management capability and noise reduction in the full height of the duct; slot size compatible with various wire types and sizes, including UTP Ethernet cabling
High‑quality Panduit PVC wiring duct base fully contains and protects wiring, easy to cut and install, and uses standard Panduit wiring duct covers
Installs with standard fasteners including Panduit NR1 rivets
Fits in the unused space in the vertical corner of enclosures, gaining sub‑panel space or saving enclosure footprint area
One‑piece base requires less time to install than multi‑piece solutions
Optional quick mount clips engage anywhere along the product base further reducing assembly costs
Panduit® divider wall snaps directly to the integrated mounting feature in the channel to create two separate channels
Compatible with Panduit 2", 3", and 4" height wiring duct; all product sizes use standard 2 inch wiring duct cover
Base and covers sold separately
