Технические характеристики E6 3IL8A5110
Раздел
Сигнальные лампы
Подраздел
Pizzato
Вес
-
Description: Illuminated monolithic indicator
-
Mounting: 22 mm
-
Lamp Type: LED
-
Lens/Button Shape: Flat Round
-
Lens Color: Yellow
-
Bezel: Metal Round
-
Nominal Lamp Voltage: 240 VAC, 250 VDC
-
Protection Rating: IP67, IP69K
-
Terminal Type: Screw
-
NEMA Rating: NEMA 1, NEMA 12, NEMA 13, NEMA 4X
-
Approvals: CE, cULus, EAC
-
Gross Weight: 0 lbs
-
Net Weight: 0 lbs
-
Manufacturer Part Number: E6 3IL8A5110
-
Manufacturer: Pizzato
-
Product Series: E6
-
Family Series: Pizzato Pilot Lights, E6 Series
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о
стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение,
учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?
Если вы не нашли продукцию бренда PIZZATO на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.
Заказать товар
Заказать товар

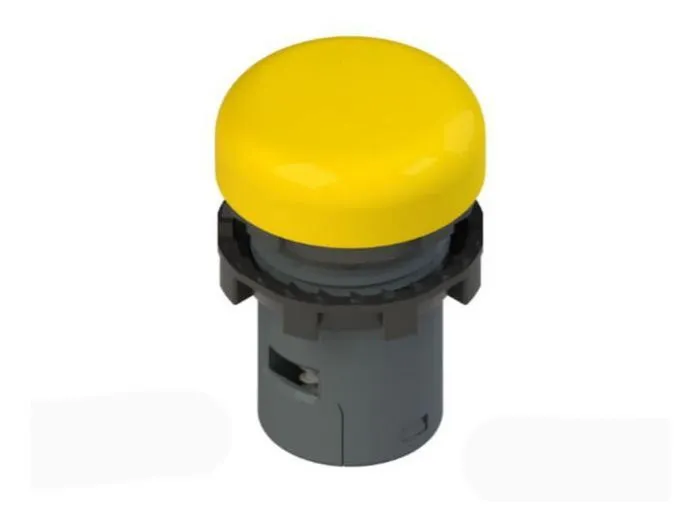

Pizzato E6 3IL8A5110
Pilot Lights, E6 Series
Item #
E63IL8A5110
Illuminated monolithic indicator
Fully integrated indicator light in monolithic body
Protection degrees IP67 and IP69K
Three supply voltages: 12‑24 VAC/DC, 120 VAC/DC, and 230 VAC/DC
Customization with symbols available
The shape of the E6 indicator light, though very compact, allows the integration on the device of all components for proper installation and functioning. All that is required is to wire the device by means of its screw terminals in a quick and intuitive way. There is no need to install further components.
These devices are designed to be used in the toughest environmental conditions and they pass the IP67 immersion test according to EN 60529. They can therefore be used in all environments where maximum protection degree of the housing is required. Due to their special design, these devices are suitable for use in equipment subjected to cleaning with high pressure hot water jets. These devices also meet the IP69K test requirements according to ISO 20653.
PIZZATO
PIZZATO специализируется на выпуске компонентов для промышленной безопасности и автоматизации. В ассортименте компании представлены концевые и предохранительные выключатели, кнопки управления, а также защитные крышки. Продукция PIZZATO обеспечивает надежную работу оборудования.
