Технические характеристики E6 3IS6A1CV1B
Раздел
Зуммеры
Подраздел
Pizzato
Вес
-
Manufacturer Part Number: E6 3IS6A1CV1B
-
Manufacturer: Pizzato
-
Product Series: E6IS
-
Family Series: Pizzato Audible Signaling Devices, E6IS Series
-
Description: Monolithic buzzer
-
Voltage: 24 VAC, 24 VDC
-
Nominal Voltage: 24 VAC, 24 VDC
-
Current Rating: 0.01 A
-
Weatherproof: Yes
-
Explosion Proof: No
-
Hazardous Location: No
-
Approvals: CE, cULus, EAC
-
Comments: Continuous Sound
-
Net Weight: 0 lbs
-
Gross Weight: 0 lbs
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о
стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение,
учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?
Если вы не нашли продукцию бренда PIZZATO на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.
Заказать товар
Заказать товар

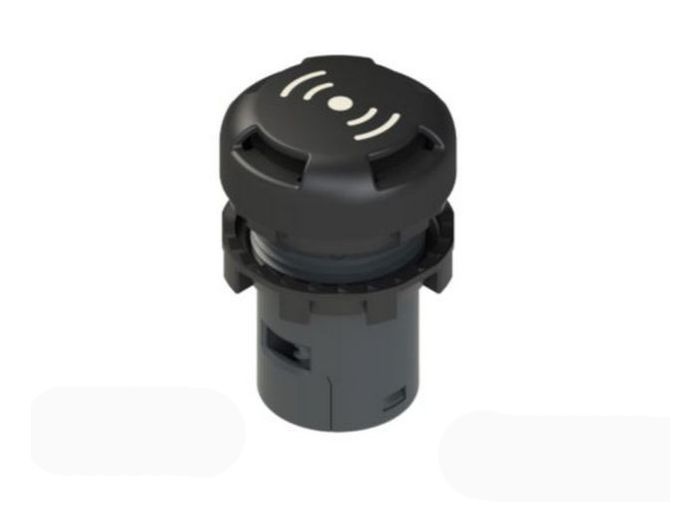

Pizzato E6 3IS6A1CV1B
Audible Signaling Devices, E6IS Series
Item #
E63IS6A1CV1B
Monolithic buzzer
Buzzer fully integrated in a reduced‑size monolithic body
Protection degree up to IP67 and IP69K.
Continuous sound and pulsed sound versions
High sound intensity
12 VAC/DC or 24 VAC/DC versions
CE, cULus, and EAC quality marks
The E6 buzzer combines compact external dimensions with a high sound intensity, in particular in the versions with perforated lens. This characteristic makes the signaling clearly noticeable, even at a distance and in noisy environments. The shape of the E6 sound indicator, though very compact, allows the integration on the device of all components for proper installation and functioning. All that is required is to wire the device by means of its screw terminals in a quick and intuitive way. There is no need to install further components. To diversify the type of indication provided, there are two different types of acoustic warnings available; continuous sound or pulsing sound.
These devices are designed to be used in the toughest environmental conditions and they pass the IP67 immersion test according to EN 60529. They can therefore be used in all environments where maximum protection degree of the housing is required. Due to their special design, these devices are suitable for use in equipment subjected to cleaning with high pressure hot water jets. These devices also meet the IP69K test requirements according to ISO 20653.
