Технические характеристики RPKIT90-100
Раздел
Система зарядки
Подраздел
RoboteQ
Вес
-
Manufacturer Part Number: RPKIT90-100
-
Manufacturer: RoboteQ
-
Product Series: RoboPad
-
Family Series: RoboteQ Power Management, RoboPad Series
-
Description: RoboPad Kit including Base and Collector, 90mm wide, 100A
-
Max Voltage: 200 V
-
Max Current: 100 A
-
Type: Charging Base and Collector
-
Continuous Current: 75 A
-
Net Weight: 0.99 lbs
-
Gross Weight: 0.99 lbs
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о
стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение,
учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?
Если вы не нашли продукцию бренда RoboteQ на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.
Заказать товар
Заказать товар
RoboteQ RPKIT90-100
Power Management, RoboPad Series
Item #
RPKIT90-100
RoboPad Kit including Base and
Magnetically Activated Charger Contacts for Mobile Robots with Optional CAN Transceiver

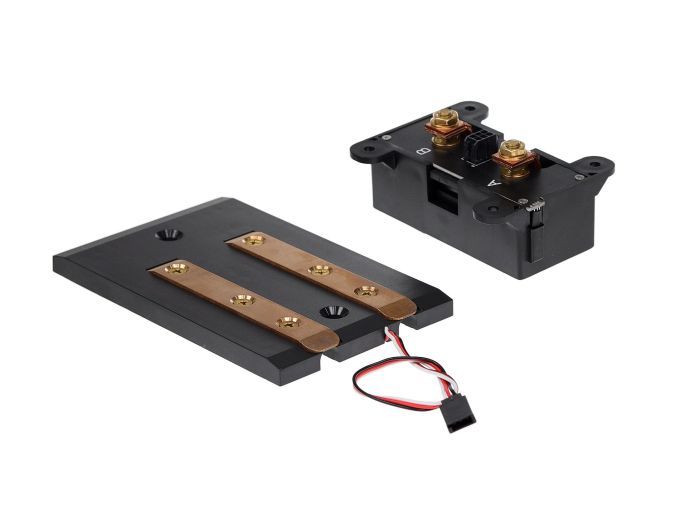

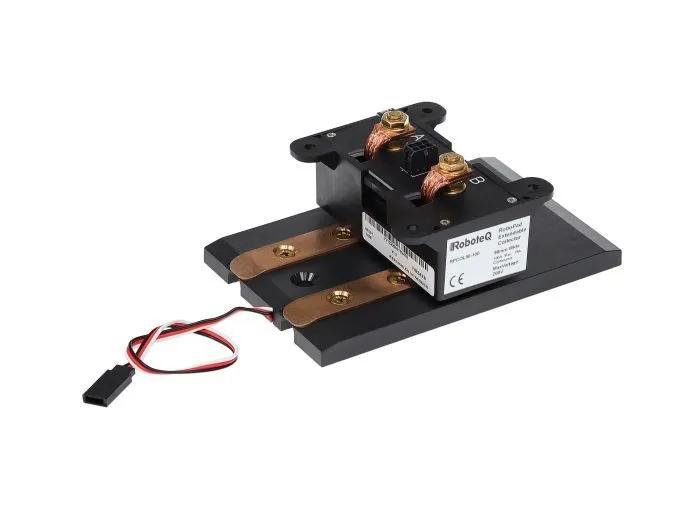

Two‑part system made of retractable collector and fixed base
Fully passive – No power required
High contact pressure
Excellent low resistance electrical contacts
Ultra‑low‑profile charge base
Floor, or wall mounting
Very low footprint
Ultra‑fast connect/disconnect. Minimizes or eliminates accidental arcing
Built‑in solid‑state Hall switches in Collector and Base to indicate retracted/extended state
The RoboPad charging contact system offers a precision, high current charging solution for mobile robots and Automated Guided Vehicles (AGV).It is composed of a charge contacts base that is typically affixed on the floor, and a collector unit with extendable contacts, mounted on the robot. Unlike conventional spring‑loaded contact products commercially available, RoboPad utilizes high energy magnets to control the connection and disconnection action automatically, while using no additional power from the mobile systems batteries. The magnet's strong attractive action result in a high pressure, high quality electrical contact. The magnet's repelling function actively forces the pads retractions as the robot moves away. The base's ultra‑low profile, and the collector's extension range, allows for far more compact charging configurations over any other charge system, in permanent factory and business environments.
