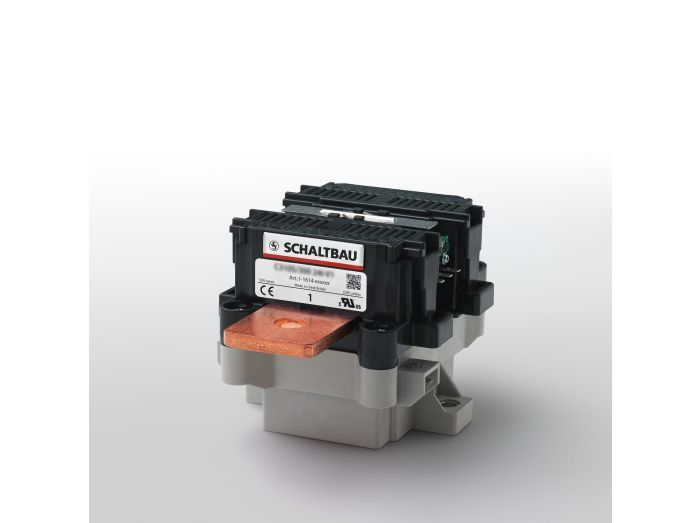

Schaltbau 1-1614-349739
Артикул:
1-1614-349739
Изготовитель:
SCHALTBAU
✅ Под заказ
ЗАКАЗАТЬ
ЗАКАЗАТЬ
Технические характеристики 1-1614-349739
Раздел
Безопасность
Подраздел
Schaltbau
Вес
-
Manufacturer Part Number: 1-1614-349739
-
Manufacturer: Schaltbau
-
Product Series: C310
-
Family Series: Schaltbau Contactors, C310 Series
-
Description: 1 Pole NO Contactor, AC And DC Bi-Directional
-
Nominal Coil Voltage: 24 VDC
-
Coil Voltage: 24 VDC
-
Poles: 1NO
-
Auxiliary Contact: None
-
Termination: Screw
-
UL Motor Switching (AC3): 300 A
-
Approvals: UL
-
Net Weight: 0 lbs
-
Gross Weight: 0 lbs
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о
стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение,
учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?
Если вы не нашли продукцию бренда SCHALTBAU на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.
Заказать товар
Заказать товар
Schaltbau 1-1614-349739
Contactors, C310 Series
Item #
C310S/30024B-V1
1 Pole NO Contactor, AC And DC
High‑Rated Insulation Voltage Ui up to 1,500V
Making Capacity 1cm up to 2,500A
High Conventional Thermal Current 1th up to 500A
Short‑Time Current‑Carrying Capacity 1cw up to 3,000A (1s)
Full Bidirectionality – Reliable Disconnection of High Performances
Use in Energy Technology and Electromobility
Auxiliary Switch with Mirror Contact Function
These bi‑directional DC contactors switch high powers in a small space. With a making capacity of up to 2,500A, the compact switchgear is suitable for applications with high inrush current or high capacities.
All versions can continuously conduct up to 500 amps. In the event of a short circuit, 3,000A, can even flow for one second without the contacts welding. The contactor, therefore, maintains its full function in order to disconnect high power ranges if necessary up to 500A and up to 1,500V – irrespective of the current direction. This full bi‑directionality is important for systems with a charging and discharging process, such as in battery networks or electric vehicles. Other typical application areas are the DC circuit in inverters, combiner boxes in photovoltaic systems or the management of battery storage systems.
