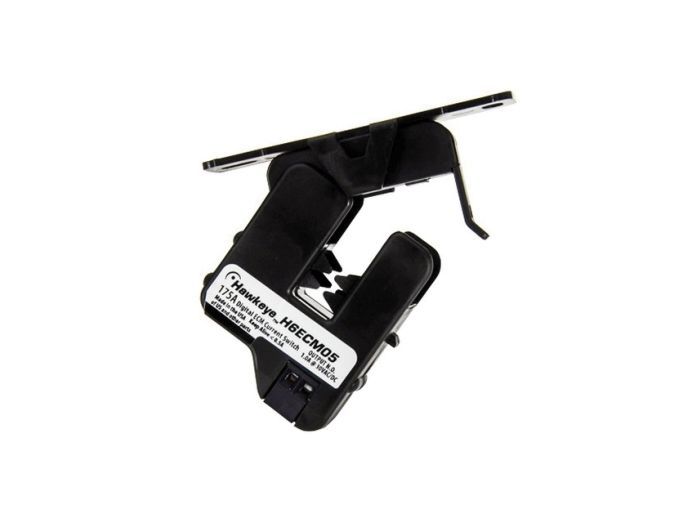

Veris Industries H6ECM05

Артикул: H6ECM05
Изготовитель: Veris Industries
✅ Под заказ
ЗАКАЗАТЬ ЗАКАЗАТЬ

Технические характеристики H6ECM05

Раздел
Текущие переключатели
Подраздел
Veris Industries
Вес
  • Description: Current Sensor,ECM,175A,0.5A,Sp-Core
  • Enclosure: Split Core
  • Terminals: Top
  • Output Signal: Normally Open
  • Output Rating: 1 A @ 30 VAC/VDC
  • Status Indicator: Yes
  • Frequency: 60 Hz
  • Approvals: cULus
  • Net Weight: 0.165 lbs
  • Gross Weight: 0.2 lbs
  • Manufacturer Part Number: H6ECM05
  • Manufacturer: Veris Industries
  • Product Series: H6ECM
  • Family Series: Veris Industries Protection Relays, H6ECM Series
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение, учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?

Если вы не нашли продукцию бренда Veris Industries на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.

Заказать товар Заказать товар
Veris Industries H6ECM05
Protection Relays, H6ECM Series Item # H6ECM05 Current Sensor,ECM,175A,0.5A,Sp-Core High performance Precise current trip point setting Small size Self‑gripping iris Status LEDs Up to 1 Amp status output APPLICATIONS: Systems with Electrically Commutated Motors such as cooling fans or compressor motors with off‑state (keep alive) current less than 0.5 A The H6ECM is a current‑sensitive switching device that monitors current (amperage) in the conductor passing through it.A change in amperage in the monitored conductor that crosses the switch (setpoint) causes the resistance of the FET status output to change state,similar to the action of a mechanical switch.The status output is suitable for connection to building controllers or other appropriate data acquisition equipment operating at up to 30 V.The product requires no external power supply to generate its output.Electrically Commutated Motors (ECMs) are increasingly common as more energy conservation measures are implemented. The ECM is a brushless DC motor that is supplied AC power,converts that power to DC current and uses electronic switching to control the motor rotation. The ECM motor shaft speed can be reduced to save energy,resulting in lower cost and less component wear.The H6ECM is optimized to provide meaningful proof of rotation which verifies that the ECM motor is operating as expected.
